Planmeca ProOne - Replacing the C-Arm Cables and the Cable Guide; Removing the Old Cables and Cable Guide

4 C-ARM AND UPPER ARM PARTS REPLACEMENT Chapter F: PARTS REPLACEMENT AND REPAIR
164 Planmeca ProOne Technical manual
4.7 Replacing the C-arm cables and the cable guide
NOTE
Two persons are needed for this installation.

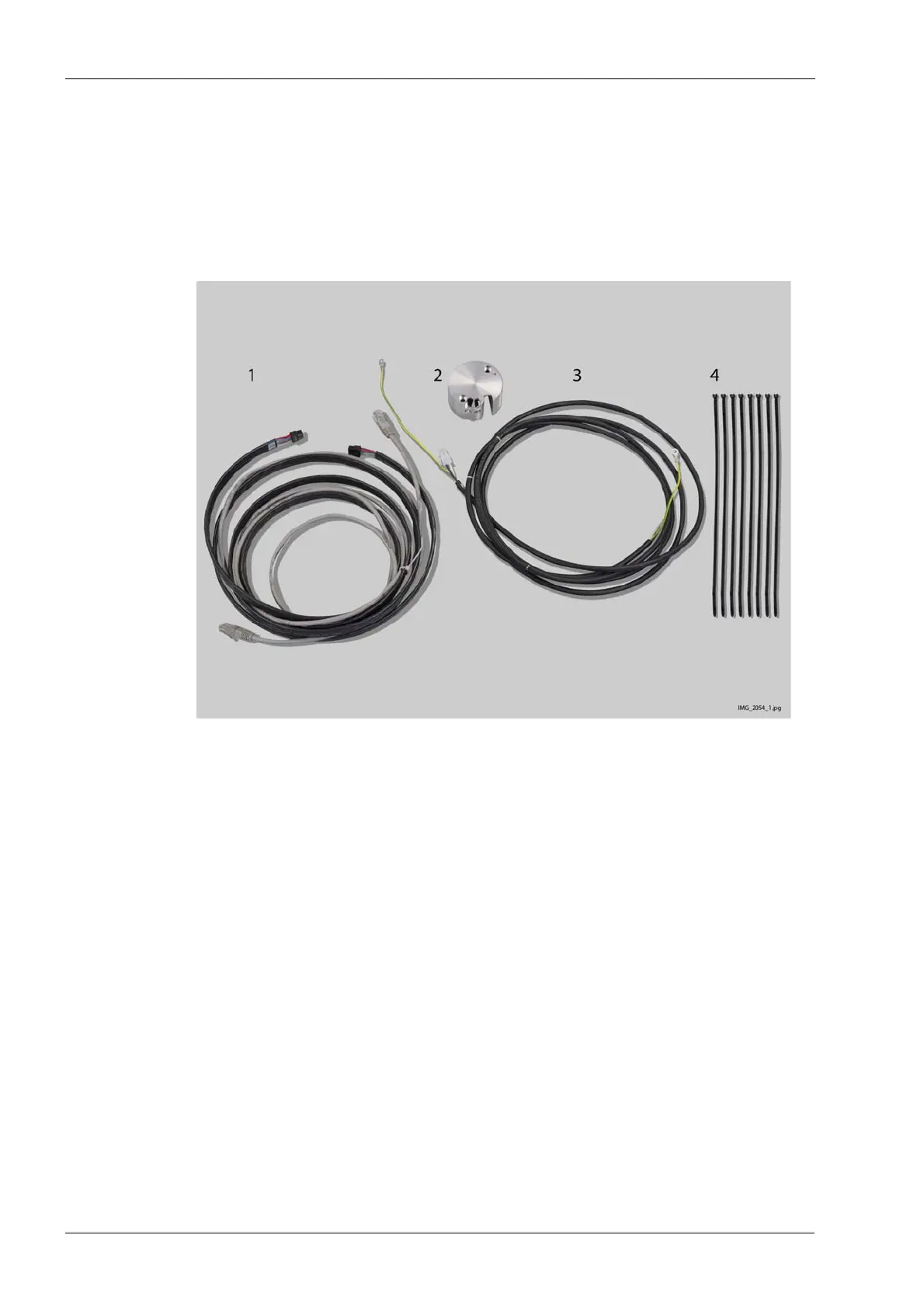

When replacing the C-arm cables (C-arm power and C-arm camera cable (1) and PSU
CAN cable (3)) replace also cable guide (2). You will need cable ties during the installation
(4).
4.7.1 Removing the old cables and cable guide
1. Drive the C-arm to the height where you can reach the upper side of the C-arm. Switch
off the X-ray unit.
2. Remove the upper arm cover.
3. Remove the C-arm covers.
