Chapter F: PARTS REPLACEMENT AND REPAIR 4 C-ARM AND UPPER ARM PARTS REPLACEMENT
Technical manual Planmeca ProOne 165

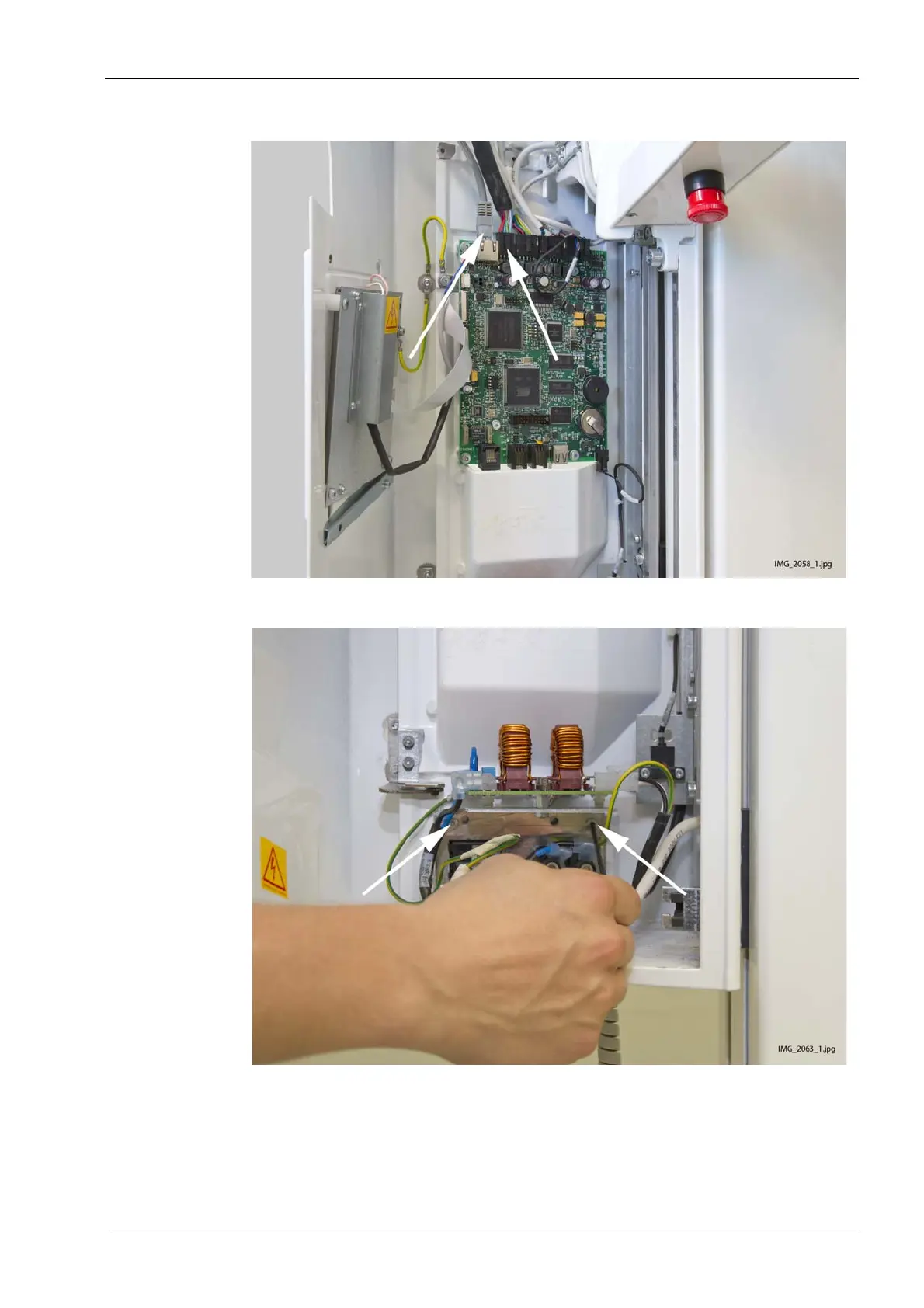

4. Disconnect the PSU CAN and C-arm camera cables from the CPU PCB.
5. Unscrew two main switch assembly attachment screws using a 2.5 mm Allen key.
