3 COLUMN PARTS REPLACEMENT Chapter F: PARTS REPLACEMENT AND REPAIR
142 Planmeca ProOne Technical manual
Check that the lift motor operates correctly. Switch the X-ray unit on and drive it up/down a
couple of times to assure smooth operation.

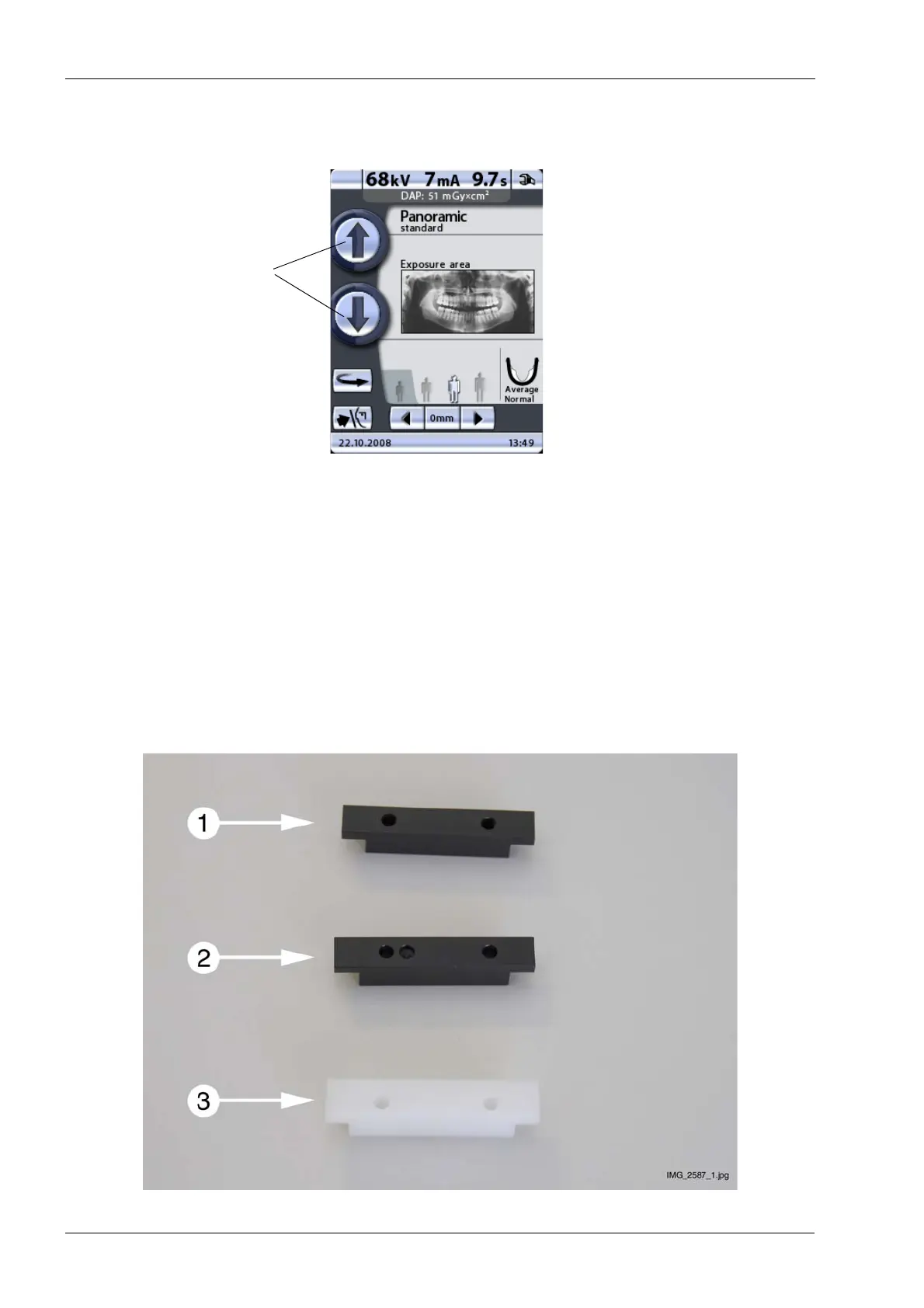

3.7 Replacing the slide fixtures
The X-ray units with serial number PRO0753646 or older are equipped with black slide
fixture with two holes (1). The X-ray units with serial number between PRO0753647-
PRO0757060 are equipped with black slide fixture with three holes (2). The older slide
fixtures (1) can be replaced with the newer one (2).
The X-ray units with serial number PRO0757070 or newer are equipped with white slide
fixture (3). Replace the white slide fixtures only with similar ones.
The fixture thickness must be at least 3 mm. If it is not, replace the fixtures.
