6.3 Dimensions

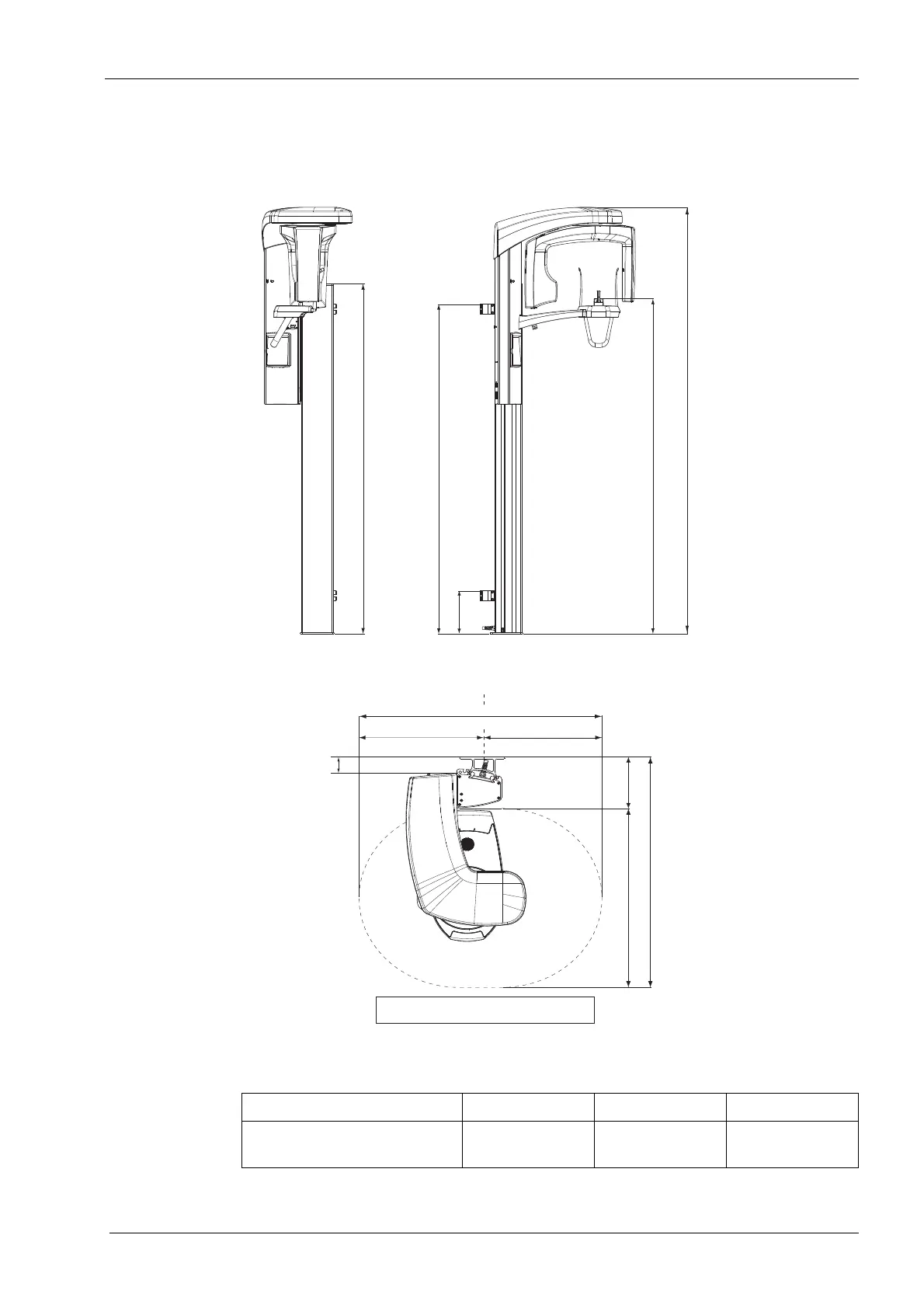

The numbers given below are nominal, physical measurements of the X-ray unit. The
minimum operational space requirements are given in the table below the figure.
Table 1: Minimum operational space requirements
Width Depth Height
Planmeca ProOne X-ray unit 1300 mm
51 in.
1300 mm
51 in.
2250 mm
89 in.
min 846 - max 1746 mm
min 1324 - max 2224 mm
52.1 - 87.6 in.
33.3 - 68.7 in.
~1725 mm
68.0 in.
1832 mm 72.1 in.
~225 mm
(Lower wall bracket optional)
8.9 in.
969 mm
38.1 in.
478 mm
18.8 in.
230 mm
*
9.1 in.
800 mm 31.5 in.
78 mm
*
3.1 in.
1030 mm
*
40.6 in.
491mm
19.3 in.
* = + 10 mm (0.4 in.) with optional extension plate
