Planmeca ProOne - PSU PCB (7005-10-01): Location of Connectors

3 PSU PCB (7005-10-01): Location of connectors Chapter G: DIAGRAMS
188 Planmeca ProOne Technical manual

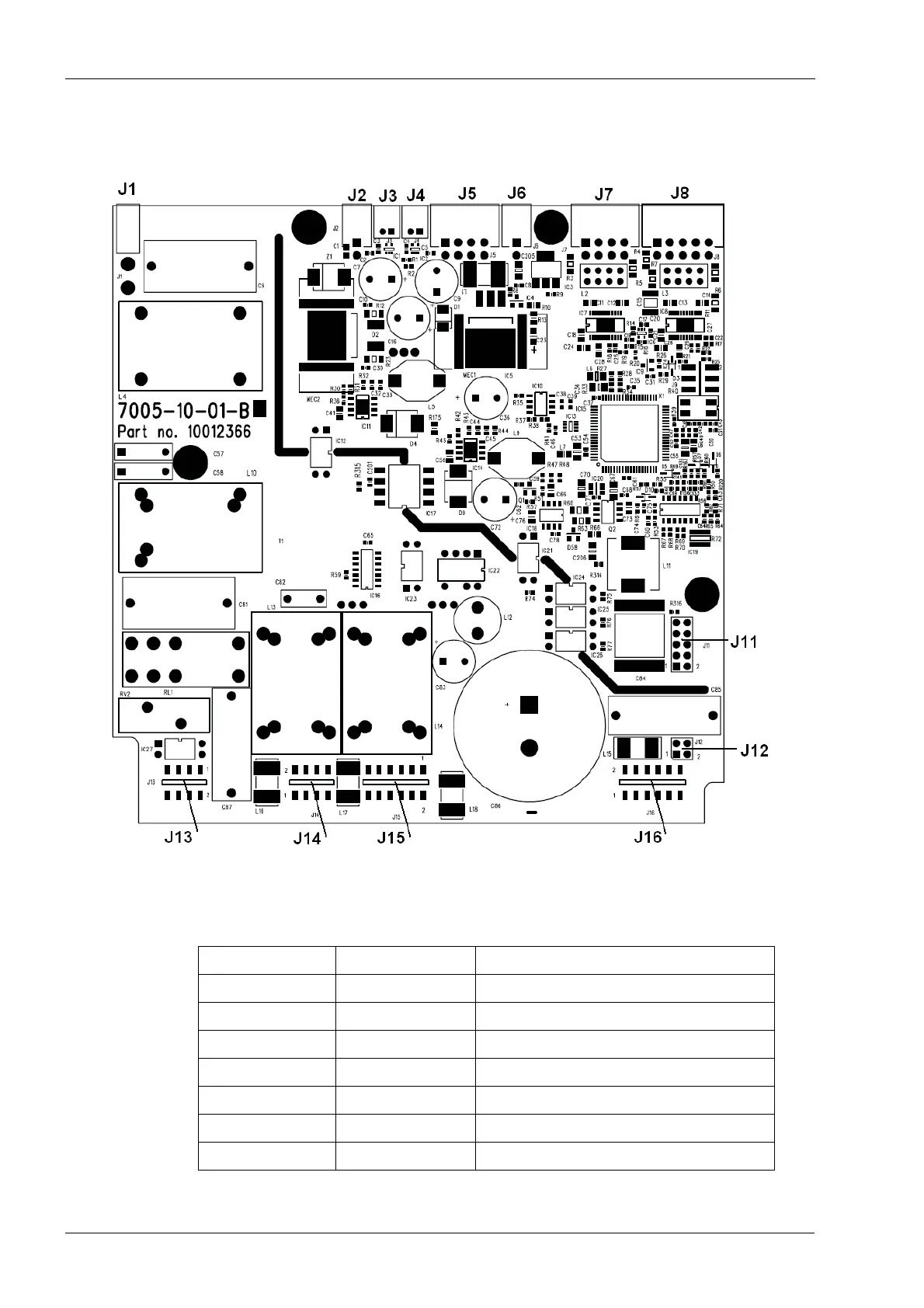

3 PSU PCB (7005-10-01): Location of connectors
Reference Name Details
J1 Mains Mains power supply
J2 Dimax Power to Dimax camera
J3 Layer Layer laser control
J4 Mids. Midsagittal laser control
J5 CAN CPU Power & Communication (CAN)
J6 Fan Fan control
J7 Collimator Collimator motor control
