Chapter B: SETTINGS 2 USER SETTINGS
Technical manual Planmeca ProOne 39
2.4 User: Network settings (U1400)
Only a service technician/local administrator may change the network settings.

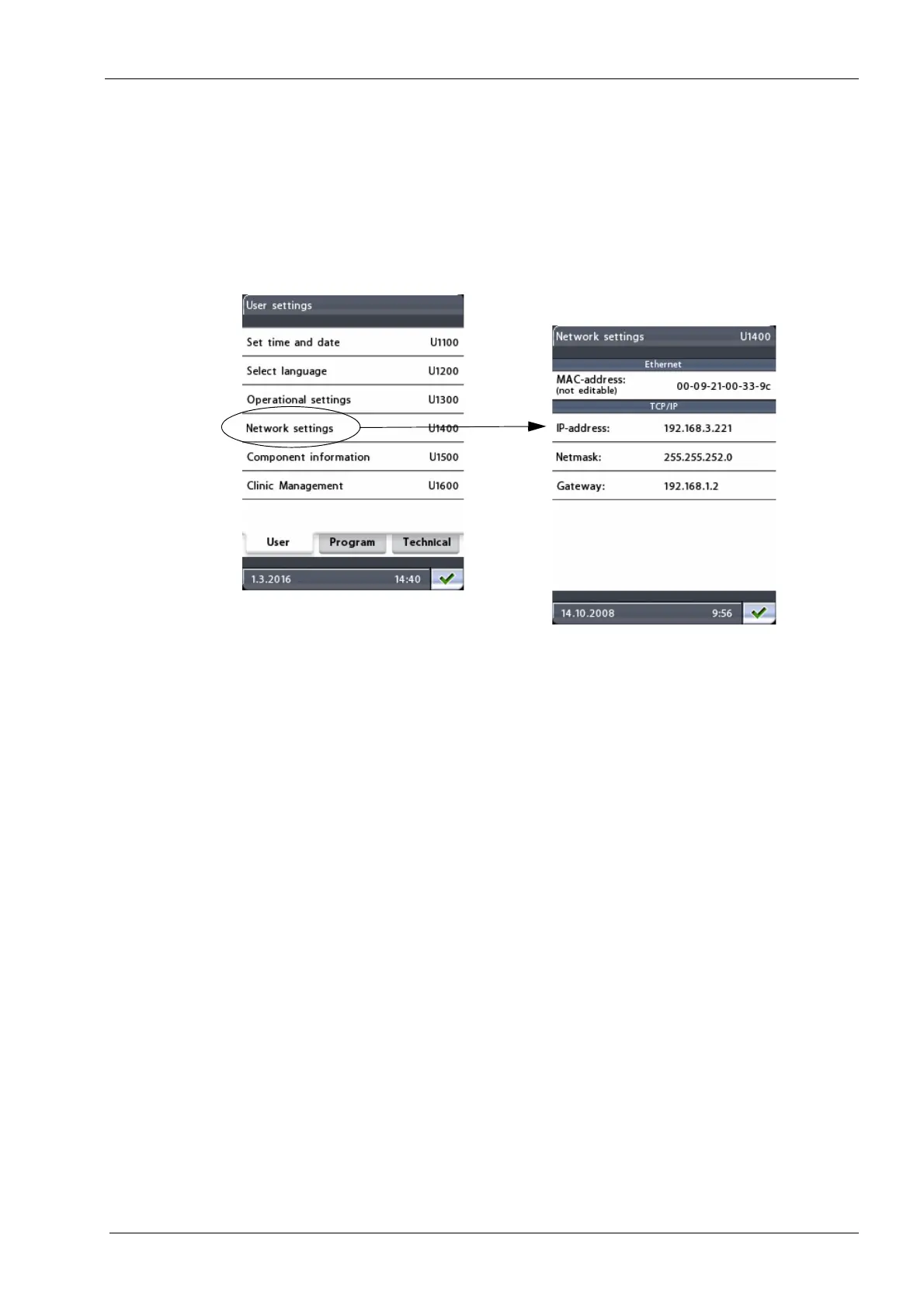

To view or change the settings for Ethernet or TCP/IP connection, first select the option
Network settings (U1400) on the
User settings
display. The
Network settings (U1400)
display will appear.
The Planmeca ProOne X-ray unit communicates through an Ethernet link. To enable the
communication it is necessary to configure the link settings for the X-ray unit and the PC
which is connected to the X-ray unit. This is done by a service technician/local
administrator when the digital system is installed and the procedure is described in detail
in the Planmeca ProOne Installation Manual (publication number 10016257).
• Ethernet
MAC address: MAC (Media Access Control) address is unit specific and it cannot be
changed.
•TCP/IP
IP address: This field shows the Ethernet interface IP (Internet Protocol) address. The
IP address is a unique number assigned to a specific X-ray unit and the address may
be changed by a service technician/local administrator only.
To change the IP address, touch the
IP address
field and enter the new address on
the number keyboard that appears. Save the new IP address by touching the green
check mark button, or exit the number display by touching the red cross button.
Netmask: This field shows the subnet mask. The value may be changed by a service
technician/local administrator only.
To change the netmask, touch the
Netmask
field and enter the new netmask on the
number keyboard that appears. Save the new netmask by touching the green check
mark button, or exit the number display by touching the red cross button.
