Chapter E: CALIBRATIONS
1 ADJUSTING AND CALIBRATING X-RAY BEAM
Technical manual
Planmeca ProOne
91

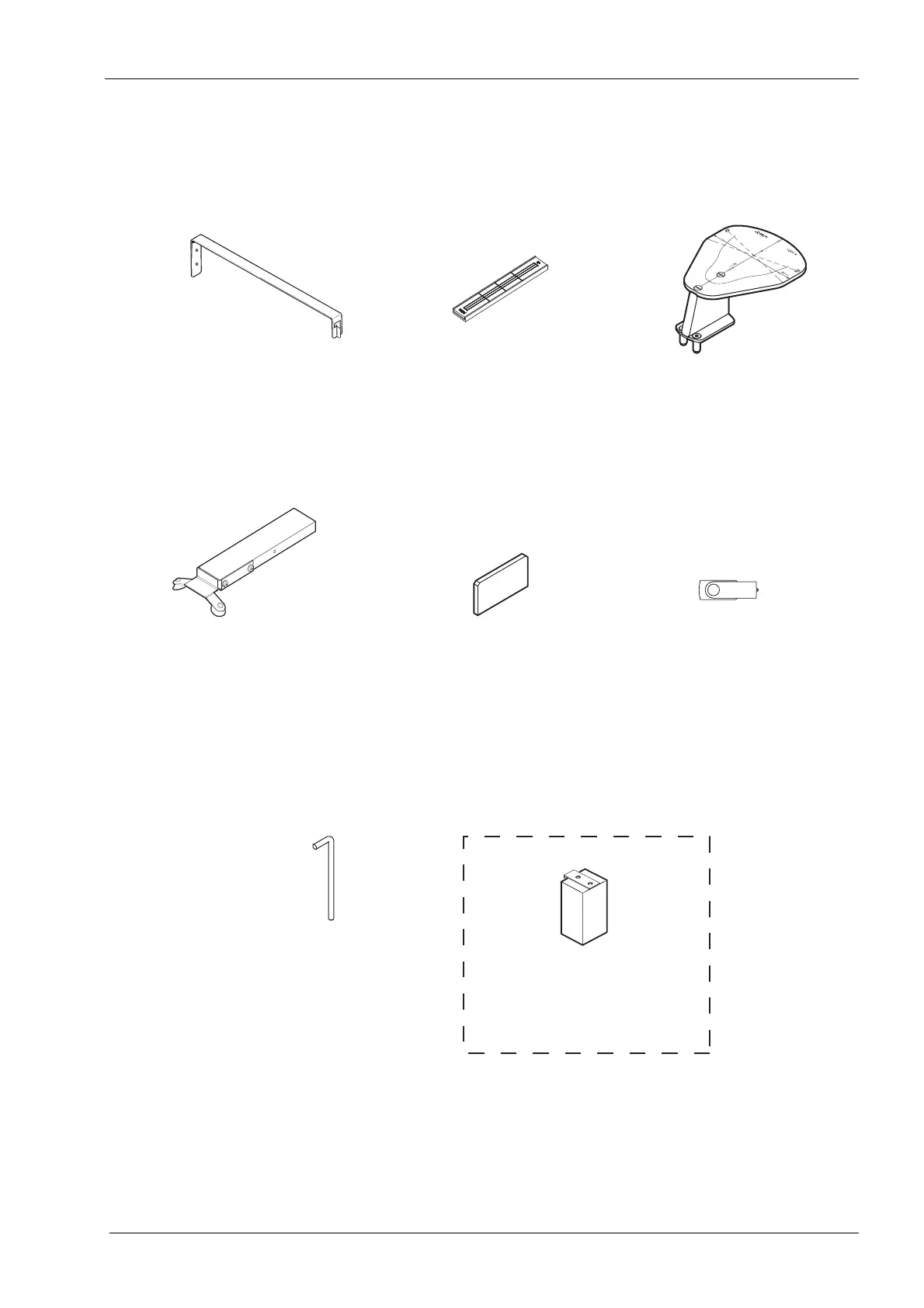

1.3 Tools required
Ball phantom
10004011
10031553
Fluoresence screen
00050972
Transportation pin
00654028
Sensor calibration block
10016995
ProOne sensor aligment tool
Technical manual and
test documentation USB
30002571
Frankfort plane alignment tool
00050977
AEC/DEC calibration block
10017027
(for DEC)
Optional tool
92
94
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter A: GENERAL & TECHNICAL DATA
7
Intended Use
7
Software Version
7
Associated Documentation
7
Warnings and Cautions
8
Symbols on Product Labels
11
Symbols on Permanently Installed X-Ray Units
11
Symbols on X-Ray Units with Detachable Power Supply Cord
12
Technical Specifications
13
Technical Data
13
Original Manufacturer
14
Dimensions
15
X-Ray Field Area
16
Scattered Radiation Information
17
User's Statement
18
HANDLING PRECAUTIONS for Pcbs and SOFTWARE CHIPS
24
Handling Printed Circuit Boards
24
Handling EEPROM Memory Chips
24
Emc Information
25
Proone Web
29
Chapter B: SETTINGS
33
General about Settings
33
Contents of the Function Tabs
34
User Settings
35
User: Set Time and Date (U1100)
36
User: Select Language (U1200)
37
User: Operational Settings (U1300)
38
User: Network Settings (U1400)
41
User: Component Information (U1500)
43
User: Clinic Management (U1600)
44
Program Settings
45
Program: Program Licences (P2100)
46
Program: Program Presets (P2200)
48
Program: Functions after Exposure (P2300)
50
Program: Archive (P2400)
52
Program: Testing Programs (P2500)
53
Program: Imaging Without PC (P2600)
55
Technical Settings
58
Technical: Mode (T3100)
59
Technical: Exposures (T3200)
62
Technical: Troubleshooting (T3300)
64
Technical: Calibrations (T3400)
67
Technical: Update Software (T3500)
70
Technical: Factory Default Settings (T3600)
72
Technical: User-Specific Settings (T3700)
73
Chapter C: ERROR MESSAGES
77
Error Messages
78
Motorized Motion Related (E02-XXX)
78
X-Ray Generator Related (E03-XXX)
80
Communication Related (E04-XXX)
82
Power Supply Related (E05-XXX)
83
System Related (E06-XXX)
85
Calibration Related (E07-XXX)
85
Chapter D: PREVENTIVE MAINTENANCE
87
System Maintenance
87
Cleaning and Disinfection
87
Operating Checks
87
Indicator Lights for Ready Status and Exposure
87
Exposure Warning Signal
87
Exposure Switch
87
Emergency Stop Button
87
Labels
88
Preventive Maintenance Checks
89
Moving Column Slide Fixtures
89
Chapter E: CALIBRATIONS
91
Adjusting and Calibrating X-Ray Beam
91
Radiation Protection
91
Beam Checking Process from Step 1 to Step 8
92
Tools Required
93
Step 1: Adjusting the X-Ray Beam Position
94
Step 2: Adjusting the Patient Support Table Position (Ball Phantom Y-Line)
99
Step 3: Adjusting the C-Arm Position (Ball Phantom X-Line)
103
Step 4: Checking Symmetry (Ball Phantom X-Line)
106
Step 5: Adjusting the Positioning Lights
108
Adjusting the Layer Light Position
109
Adjusting the Midsagittal Plane Light Position
110
Adjusting the Frankfort Plane Light Position
111
Step 6: Calibrating the Sensor
113
Step 7: Taking Beam Check Exposure
113
Step 8: Taking a Ball Phantom Exposure
113
Calibrating Dynamic Exposure Control (Dec)
114
Chapter F: PARTS REPLACEMENT and REPAIR
119
Removing Column Covers
119
Opening the Front Panel
119
Removing C-Arm and Upper Arm Covers
120
Removing the Upper Arm Cover
121
Removing the Sensor Head Cover
122
Removing the Tube Head Covers
123
Removing the C-Arm Inner Cover
124
Column Parts Replacement
125
Replacing the Frankfort Plane Positioning Light
125
Replacing the Control Panel
126
Replacing the CPU PCB
128
Replacing Battery on CPU PCB
129
Replacing the Lift Motor
131
Replacing the Lift Motor Steel Cable
136
Replacing the Slide Fixtures
144
Arm and Upper Arm Parts Replacement
154
Replacing the Sensor Head
154
Replacing the Power Supply Unit (PSU) Assembly
156
Replacing the Tube Head
158
Filament Definition
161
Replacing the Collimator
162
Replacing the Layer Light
164
Replacing the Midsagittal Plane Positioning Light
165
Replacing the C-Arm Cables and the Cable Guide
166
Removing the Old Cables and Cable Guide
166
Installing the New Cables and Cable Guide
175
Chapter G: DIAGRAMS
185
Wiring Diagrams
186
Wiring Diagram for Permanently Installed X-Ray Units
186
Wiring Diagram for X-Ray Units with Detachable Power Supply Cord
187
PSU PCB (7005-10-01): Location of Indicators
188
PSU PCB (7005-10-01): Location of Connectors
190
Cpu Pcb
192
Location of Indicators and Connectors
192
