4 C-ARM AND UPPER ARM PARTS REPLACEMENT
4.1 Replacing the sensor head
Remove the sensor head cover as described in section 2.2 "Removing the sensor head
cover" on page 120.

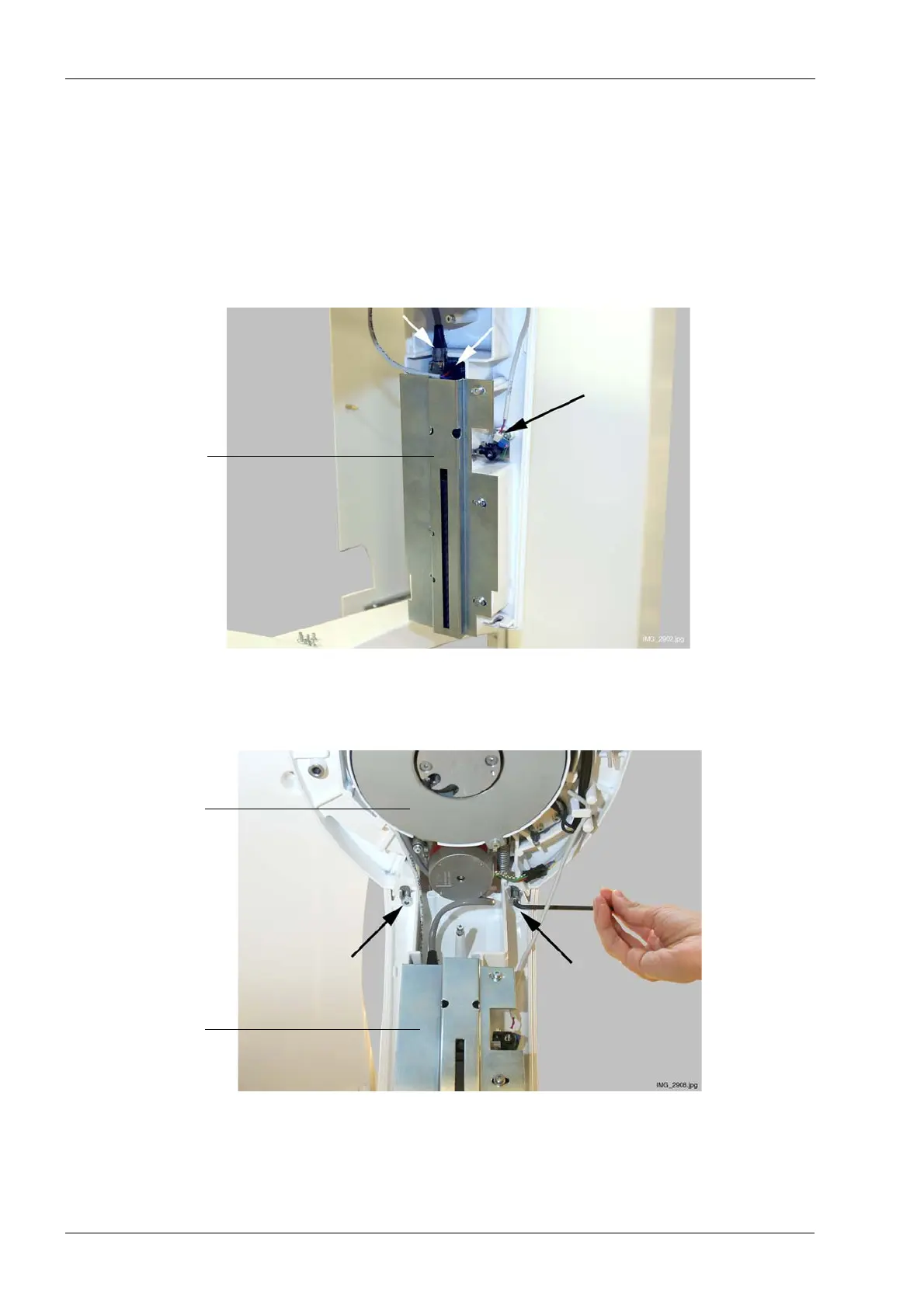

First carefully disconnect the three cables attached to the sensor head.
Then loosen the two attachment screws on top of the sensor head with a 4 mm Allen key.
Do not remove the screws.
Sensor head
C-arm top frame
Sensor head
