Chapter F: PARTS REPLACEMENT AND REPAIR 3 COLUMN PARTS REPLACEMENT
Technical manual Planmeca ProOne 147

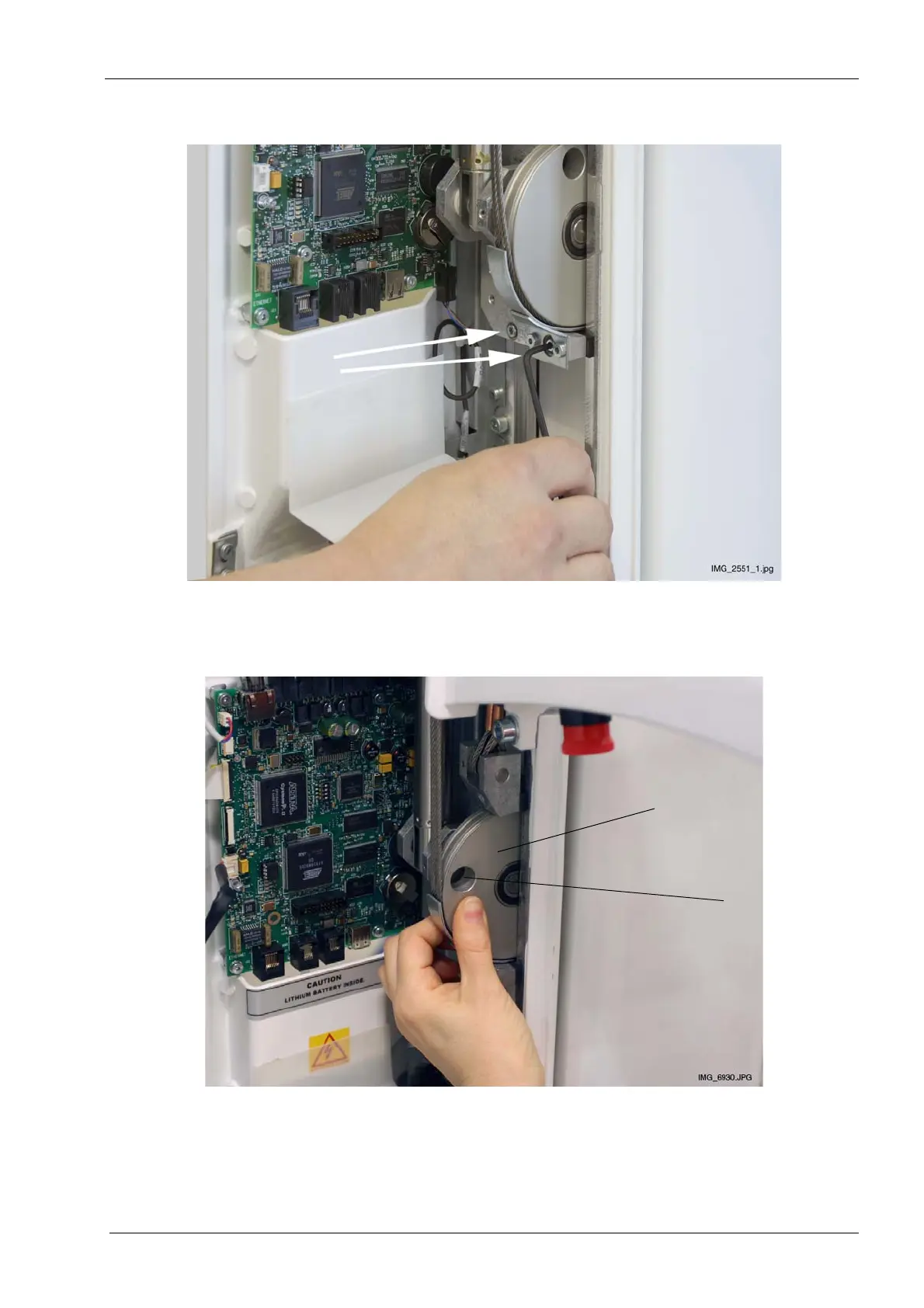

Tighten two attachment screws.
The lift motor must be moved aside before the upper slide fixture can be replaced. Do it as
follows. Rotate the lower steel cable pulley until the disc hole is positioned directly over the
spindle shaft.
Lower steel cable pulley
Spindle shaft
