3 COLUMN PARTS REPLACEMENT Chapter F: PARTS REPLACEMENT AND REPAIR
150 Planmeca ProOne Technical manual

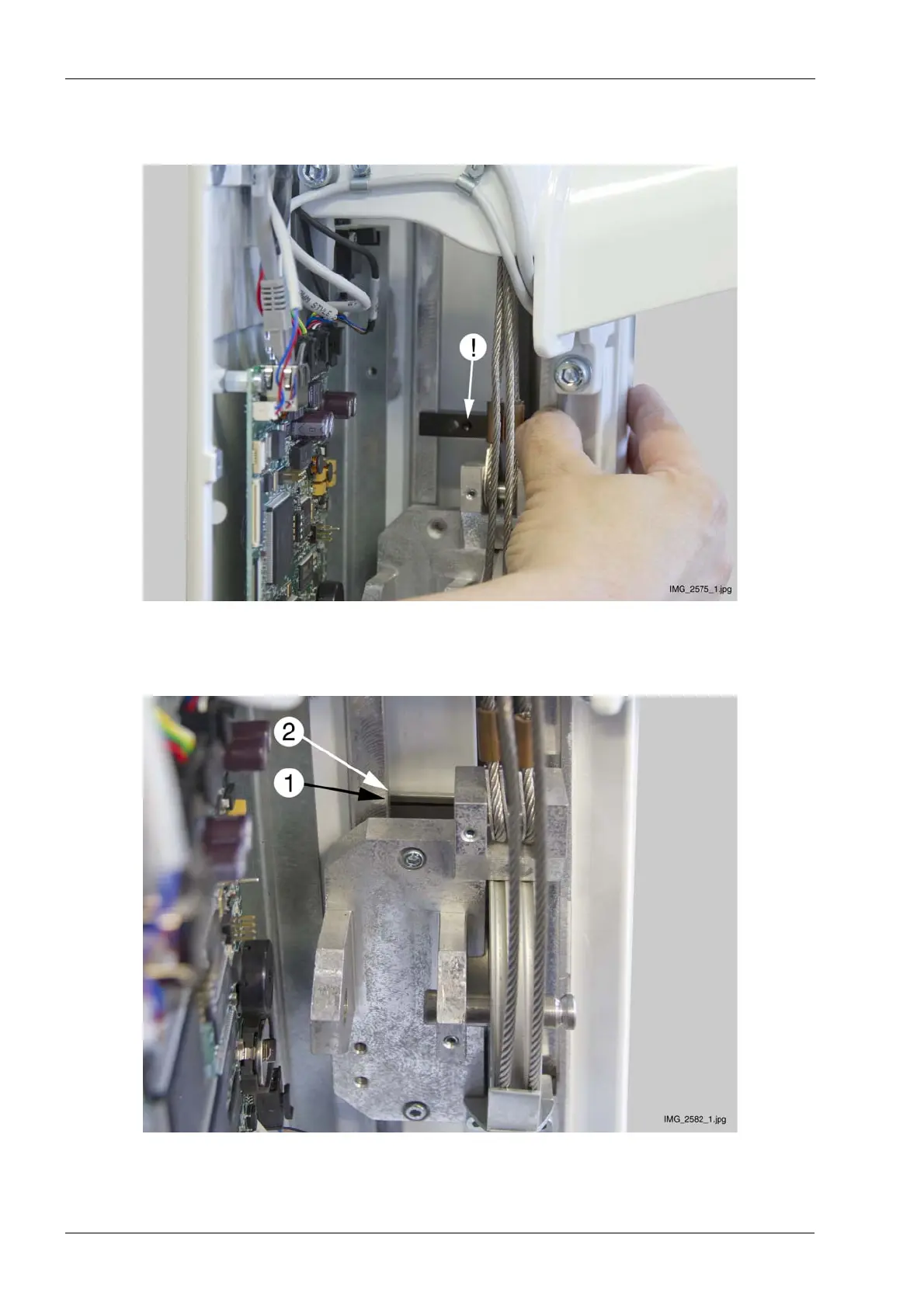

Place the new slide bar to its position in direction shown below (!).
Place the slide bar (1) onto the nut bar (2) as shown on the figure below. The rounded side
of the nut bar must be against the slide bar, Place the slide and nut bars to their positions.
