Chapter F: PARTS REPLACEMENT AND REPAIR 4 C-ARM AND UPPER ARM PARTS REPLACEMENT
Technical manual Planmeca ProOne 161
When you reconnect the collimator step motor cable, route it in one of the grooves in the
PSU assembly front grid as shown. This is to avoid problems when reattaching the tube
head covers.
NOTE
Adjust the X-ray beam position as described in section 1.4 "Step 1: Adjusting the X-ray
beam position" on page 92.
NOTE
Adjust the C-arm position as described in section 1.6 "Step 3: Adjusting the C-arm position
(ball phantom x-line)" on page 101.
NOTE
Check that the X-ray beam is symmetrical. Refer to section 1.7 "Step 4: Checking symmetry
(ball phantom x-line)" on page 104.

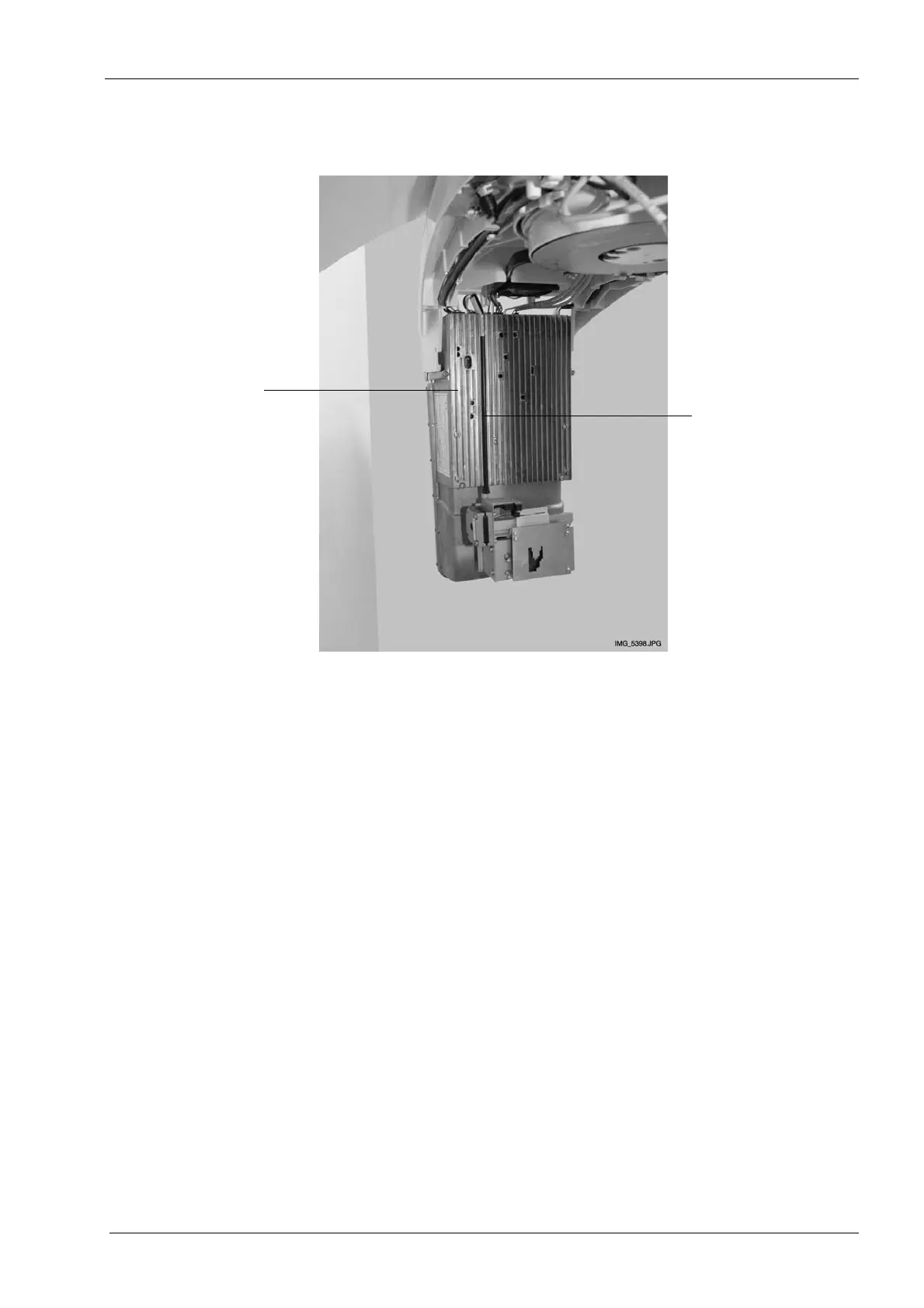

PSU assembly
front grid
Step motor cable
