4 C-ARM AND UPPER ARM PARTS REPLACEMENT Chapter F: PARTS REPLACEMENT AND REPAIR
168 Planmeca ProOne Technical manual

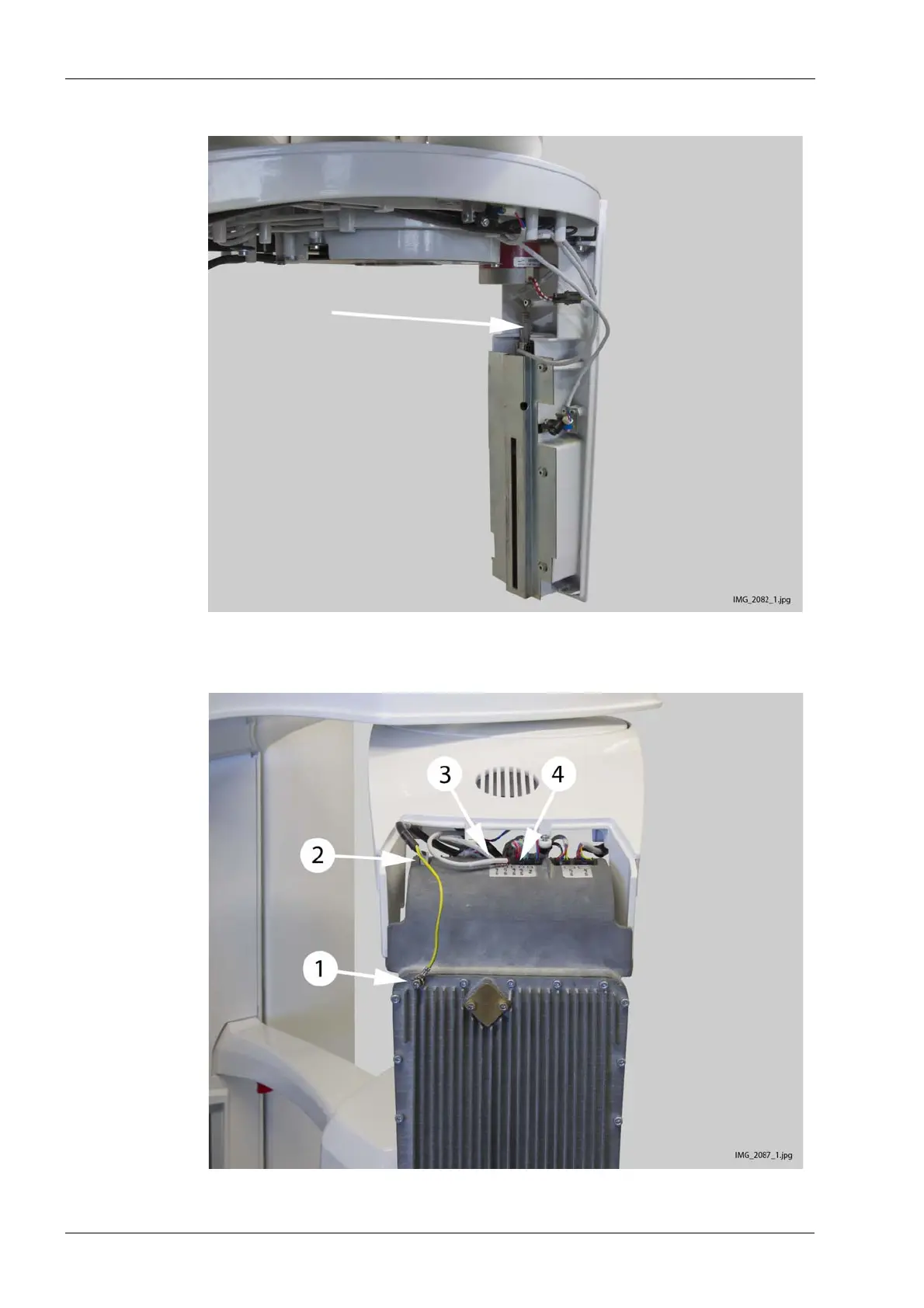

10. Disconnect the C-arm camera cable from the sensor head.
11. Detach the grounding lead from the tube head (1). Disconnect the C-arm power cable
and PSU CAN cable from the tube head (2,3 and 4).
