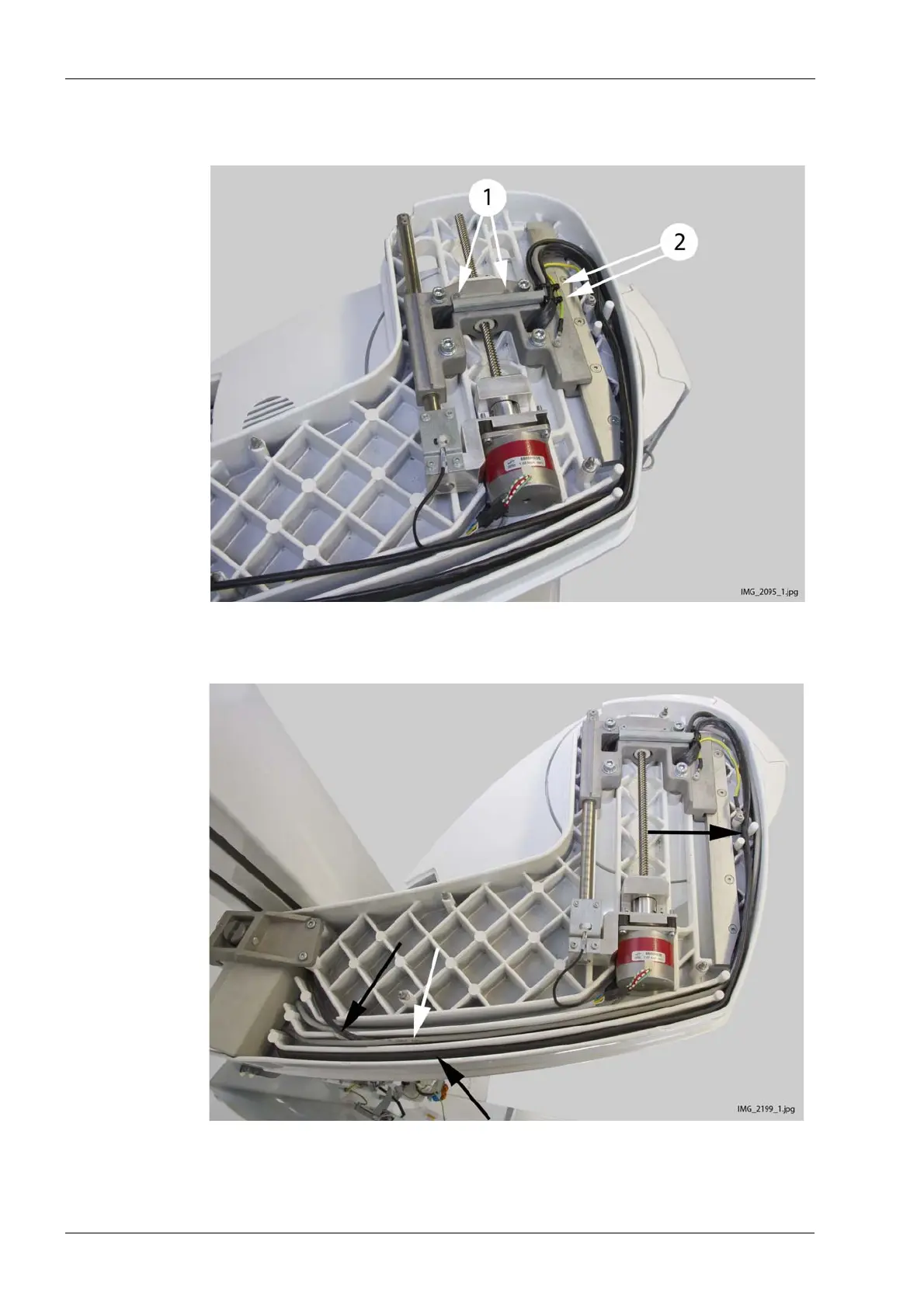

16. Attach the upper arm cable guide (1). Secure the PSU CAN and C-arm camera cable
to the gable guide (2).
17. Route the cables along the upper arm and to the moving column.
18. Install the cables to the moving column (removal instructions in reverse order).
19. Check the C-ram movement.
20. Calibrate the X-ray beam.
