Cylinder Head and Valves
02
020
31
RG,RG34710,82 –19–30SEP97–1/1

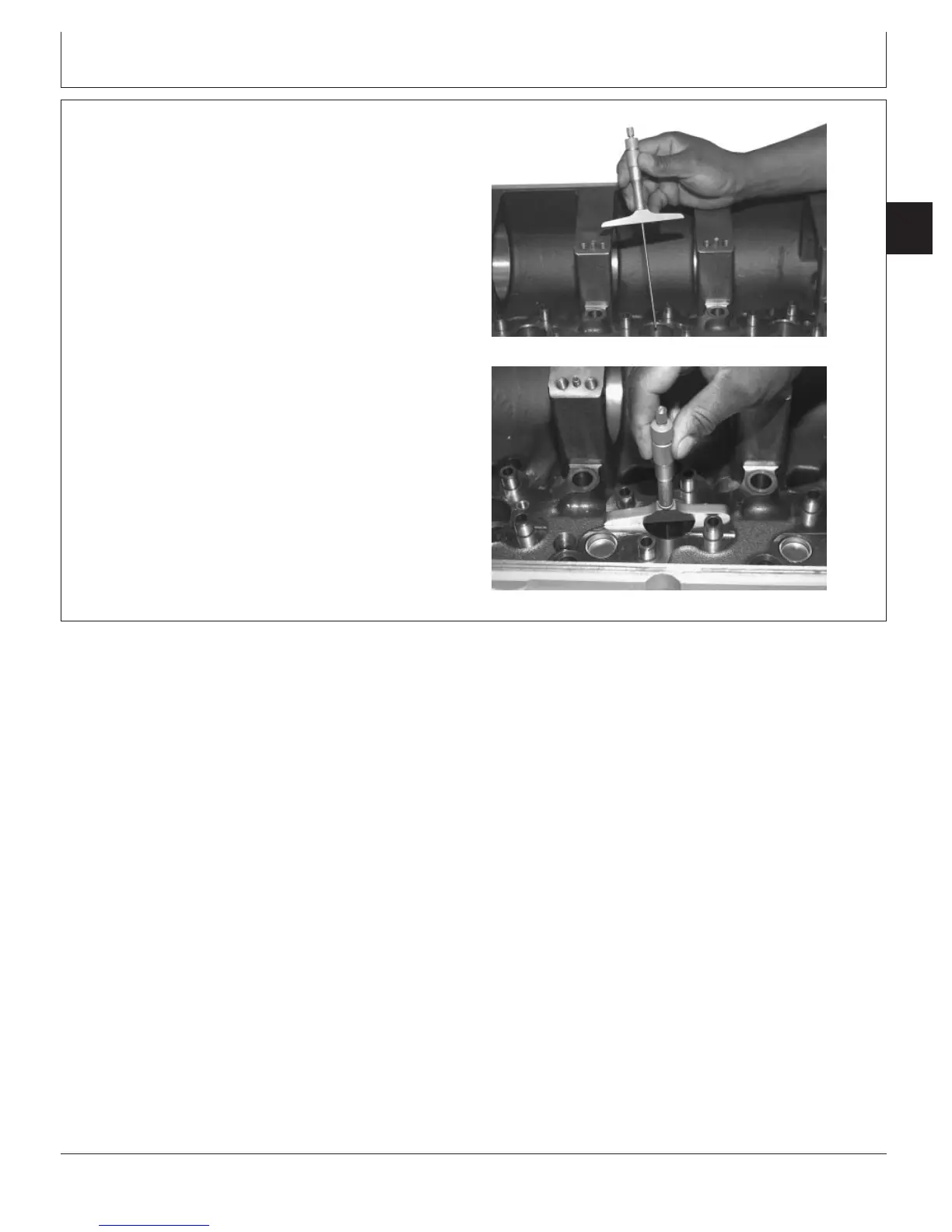

Measure Cylinder Head Thickness
RG8324 –UN–21MAY98
Using Depth Gauge
RG8325 –UN–21MAY98
Measuring Cylinder Head Thickness
Measure cylinder head thickness from rocker
cavity-to-combustion face.
If cylinder head thickness is less than wear limit, DO NOT
attempt to resurface. Install a new cylinder head.
If cylinder head thickness is greater than wear limit, a
MAXIMUM of 0.15 mm (0.006 in.) can be ground from
new part dimension for a minimum overall thickness. (See
RESURFACE CYLINDER HEAD COMBUSTION FACE,
later in this group.)
Specification
Cylinder Head (Rocker Arm
Cover-to-Combustion Face)—
New Part Thickness 124.975—125.025 mm
(4.9203—4.9222 in.)
..............................................
Minimum Acceptable Thickness 124.840 mm (4.9150 in.).........................
CTM100 (06APR04)
02-020-31
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=103
