Cylinder Block, Liners, Pistons, and Rods
02
030
28
RG,RG34710,120 –19–30SEP97–1/1

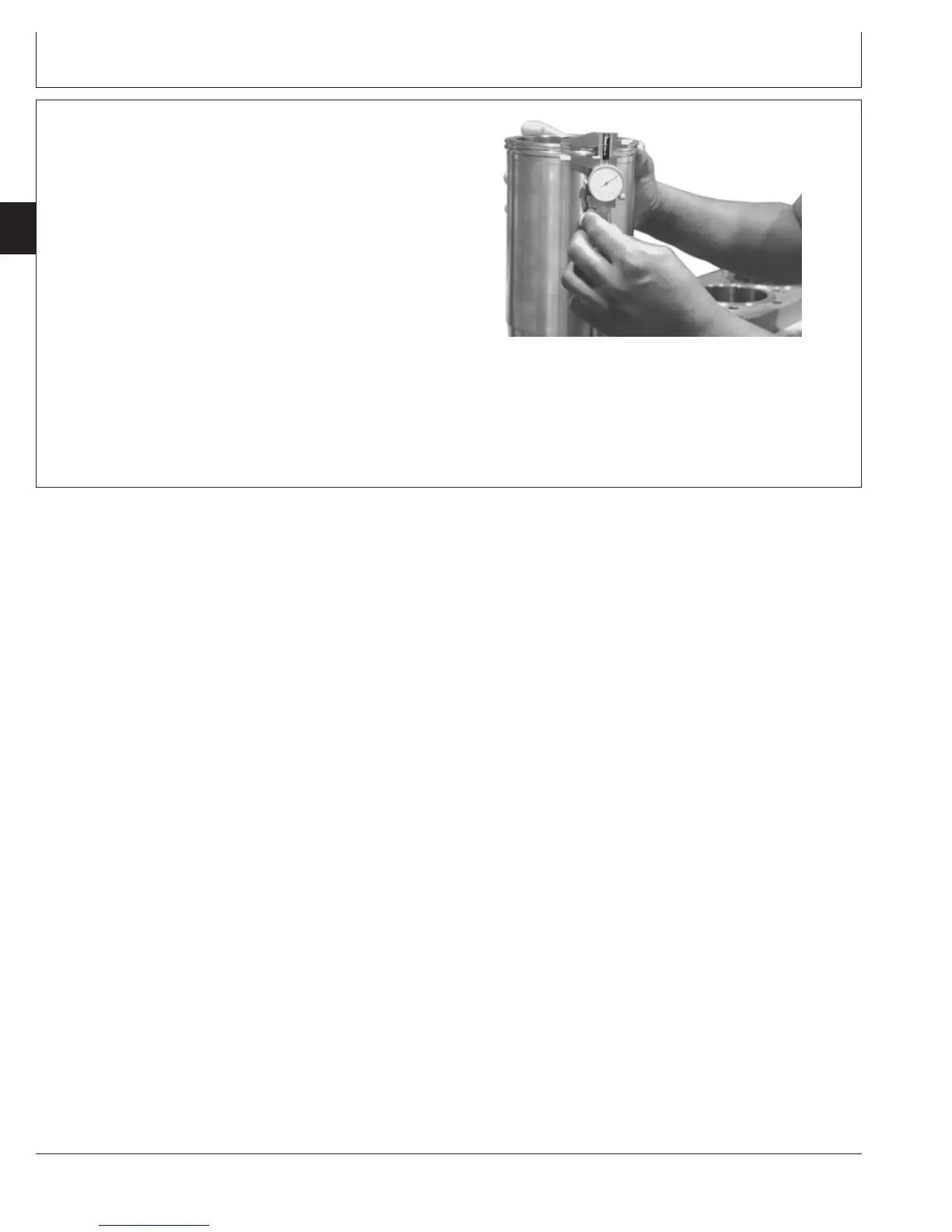

Measure Liner Flange Thickness
RG8199 –UN–21MAY98
Measuring Liner Flange Thickness
Measure cylinder liner flange thickness at several
locations and compare with specification given below.
If liner flange is not within specification, use liner shims or
replace piston and liner as a set.
Specification
Cylinder Liner Flange—Thickness 9.525—9.575 mm
(0.3750—0.3770 in.)
................................
CTM100 (06APR04)
02-030-28
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=168
