Cylinder Block, Liners, Pistons, and Rods
02
030
54
RG,RG34710,137 –19–13AUG99–1/1
Remove and Install Piston Spray Jets
RG8299A –UN–06DEC97

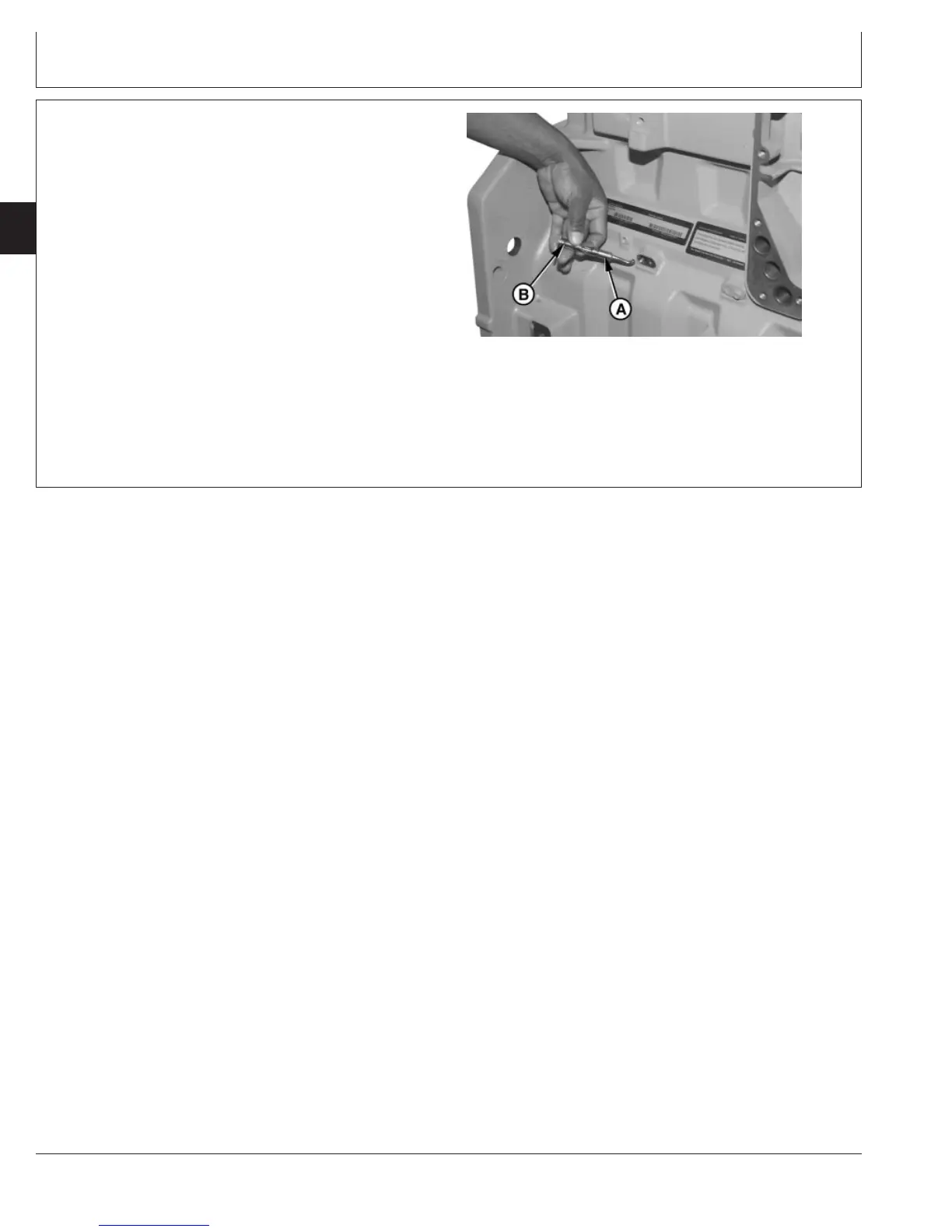

Installing Piston Spray Jets
A—Piston Spray Jets
B—O-Ring
1. Remove piston spray jets.
2. Coat O-ring (B) with JDT405 High Temperature
Grease.
3. Install piston spray jets (A) at each of the six locations
on right side of block.
4. Tighten cap screws to specifications.
Specification
Piston Spray Jet Cap Screws—
Torque 15 N•m (11 lb-ft).............................................................................
