Group 060
Lubrication System
02
060
1
RG,RG34710,206 –19–28JUL99–1/1
Oil Filter and Oil Conditioning Housing Assembly
RG10264 –UN–03NOV99

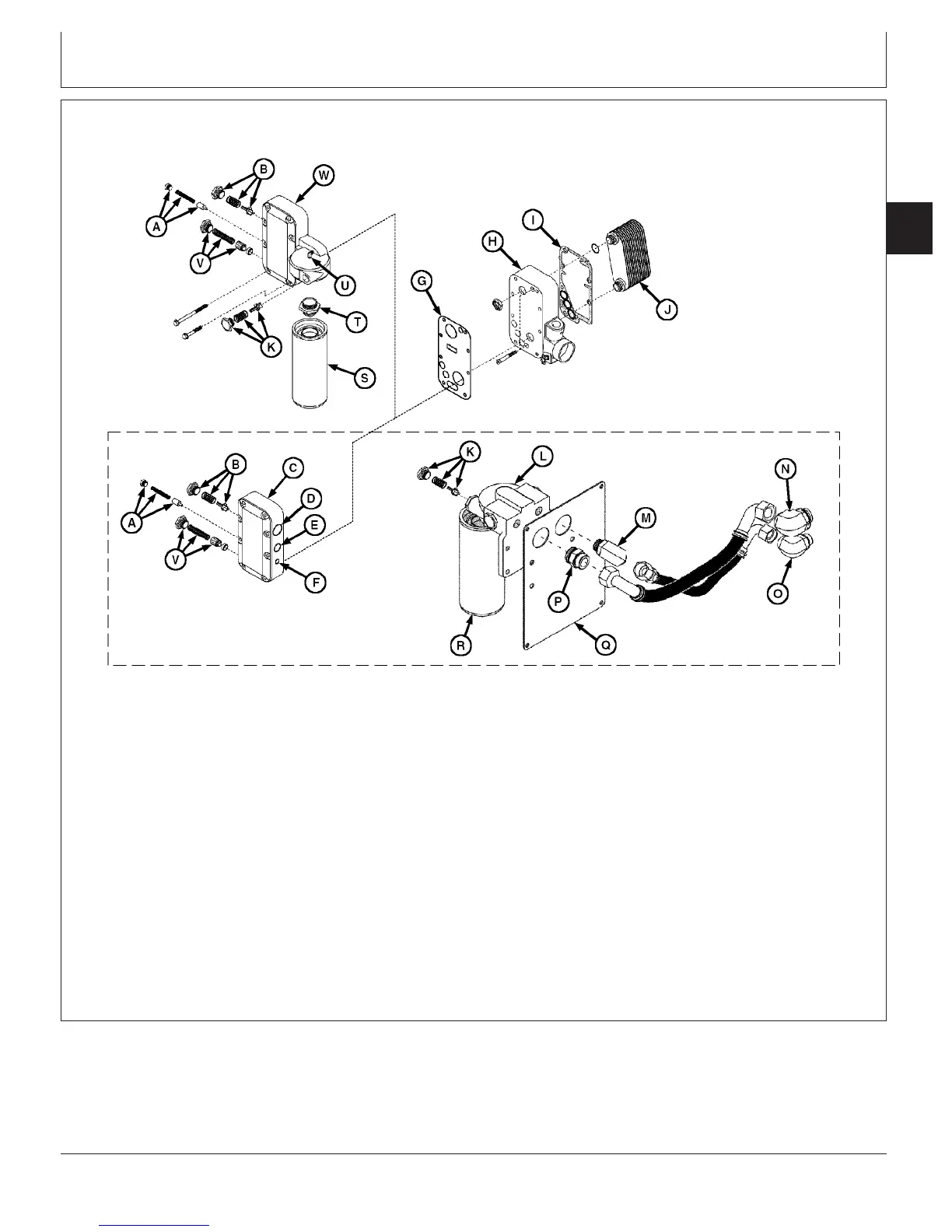

Oil Filter Base, Oil Cooler, and Valve Assembly (Remote Filter Option Shown on Lower Portion of Figure)
A—Pressure Relief Valve F—Port to Turbocharger Oil M—1 in. ID Elbow (Remote Oil R—Remote Oil Filter
Assembly (If Equipped) Inlet (Remote Oil Filter Filter Applications) S—Oil Filter
B—Oil Cooler Bypass Valve Applications) N—1-1/4 in. ID Elbow (To T—Filter Adapter
Assembly G—Gasket Remote Oil Filter Inlet) U—Port to Turbocharger Oil
C—Oil Cooler Cover/Valve H—Oil Cooler Housing O—1 in. ID Elbow (To Remote Inlet
Housing (Remote Filter I—Gasket Oil Filter Outlet) V—Pressure Regulating Valve
Applications) J—Oil Cooler P—1-1/4 ID Adapter (Remote Assembly
D—Port to Remote Oil Filter K—Oil Filter Bypass Valve Oil Filter Applications) W—Oil Filter and Valve
Inlet Assembly Q—Access Cover (Remote Oil Housing
E—Port to Remote Oil Filter L—Remote Oil Filter Housing Filter Applications)
Outlet
CTM100 (06APR04)
02-060-1
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=269
