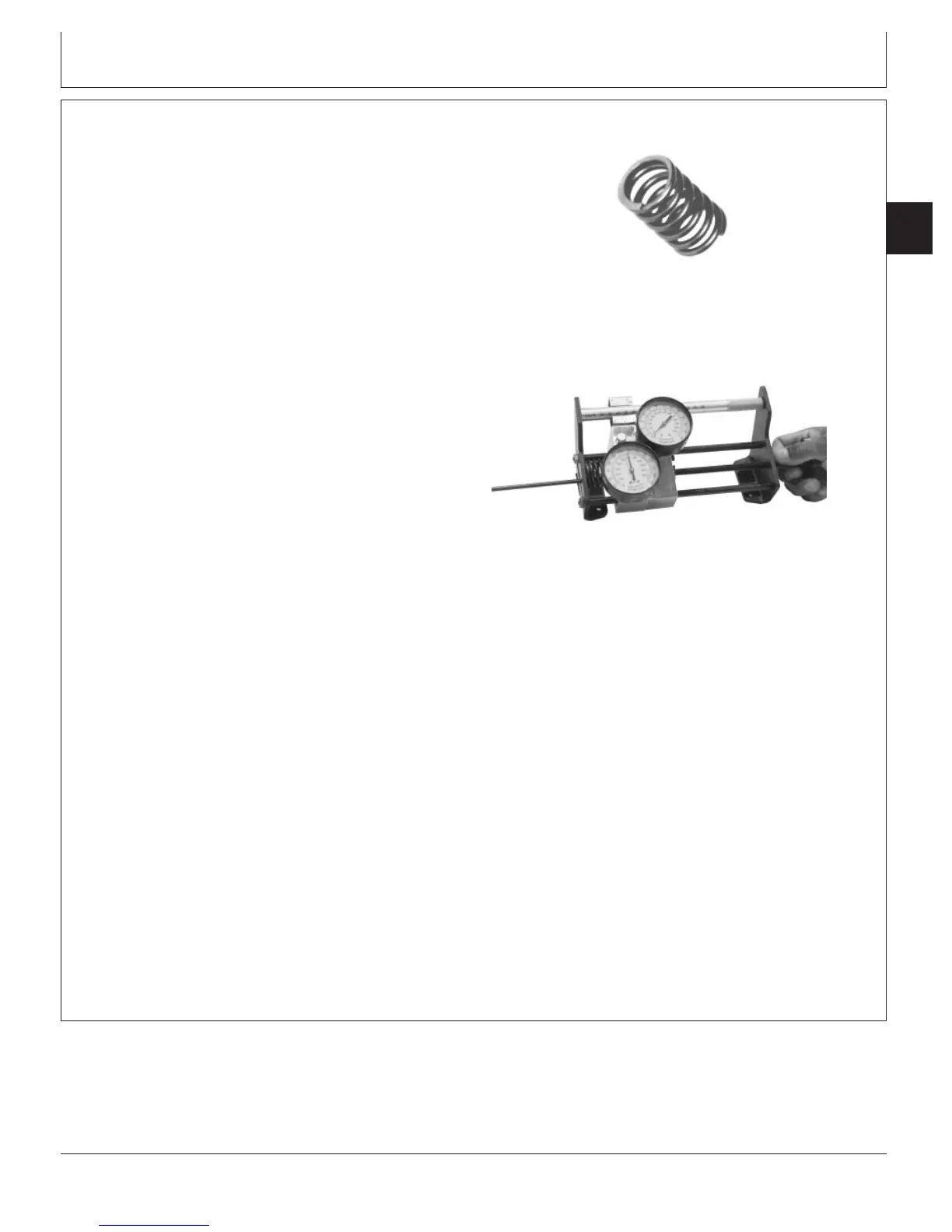

Inspect and Measure Valve Springs
RG2732 –UN–04DEC97
Valve Spring
RG7427 –UN–21MAY98
Measuring Valve Spring Compression
IMPORTANT: Replacement valve springs (R133891)
have higher working loads than older
springs (R116585). Newer valve springs
(R133891) have two green paint stripes
for identification. Valve springs must be
replaced in sets of two with new
rotators. DO NOT intermix springs
across valve bridges.
1. Inspect valve springs for alignment, wear, and damage.
2. Using D01168AA Spring Compression Tester, check
valve spring tension. Compressed height must be
within specification given below.
Specification
Intake and Exhaust Valve Springs
(All)
1
—Height at 0 N (0 lb-force)
Free Length 67.9—72.1 mm (2.67—2.84 in.).............................................
Intake and Exhaust Valve Springs
(R116585)—Height at 352—396
N (79—89 lb-force) (Valve
Closed) 59.4 mm (2.34 in.).........................................................................
Intake and Exhaust Valve Springs
(R116585)—Height at 845—935
N (190-210 lb-force) (Valve
Open) 45.5 mm (1.79 in.)............................................................................
Intake and Exhaust Valve Springs
(R133891)—Height at 527—593
N (118—133 lb-force) (Valve
Closed) 59.4 mm (2.34 in.).........................................................................
Intake and Exhaust Valve Springs
(R133891)—Height at 1187—
1313 N (267—295 lb-force)
(Valve Open) 46.4 mm (1.83 in.)................................................................
1
Free length of springs may vary slightly between springs.
