Cylinder Block, Liners, Pistons, and Rods
02
030
45
RG,RG34710,131 –19–01NOV00–1/2
Install Cylinder Liners
RG2772 –UN–04DEC97

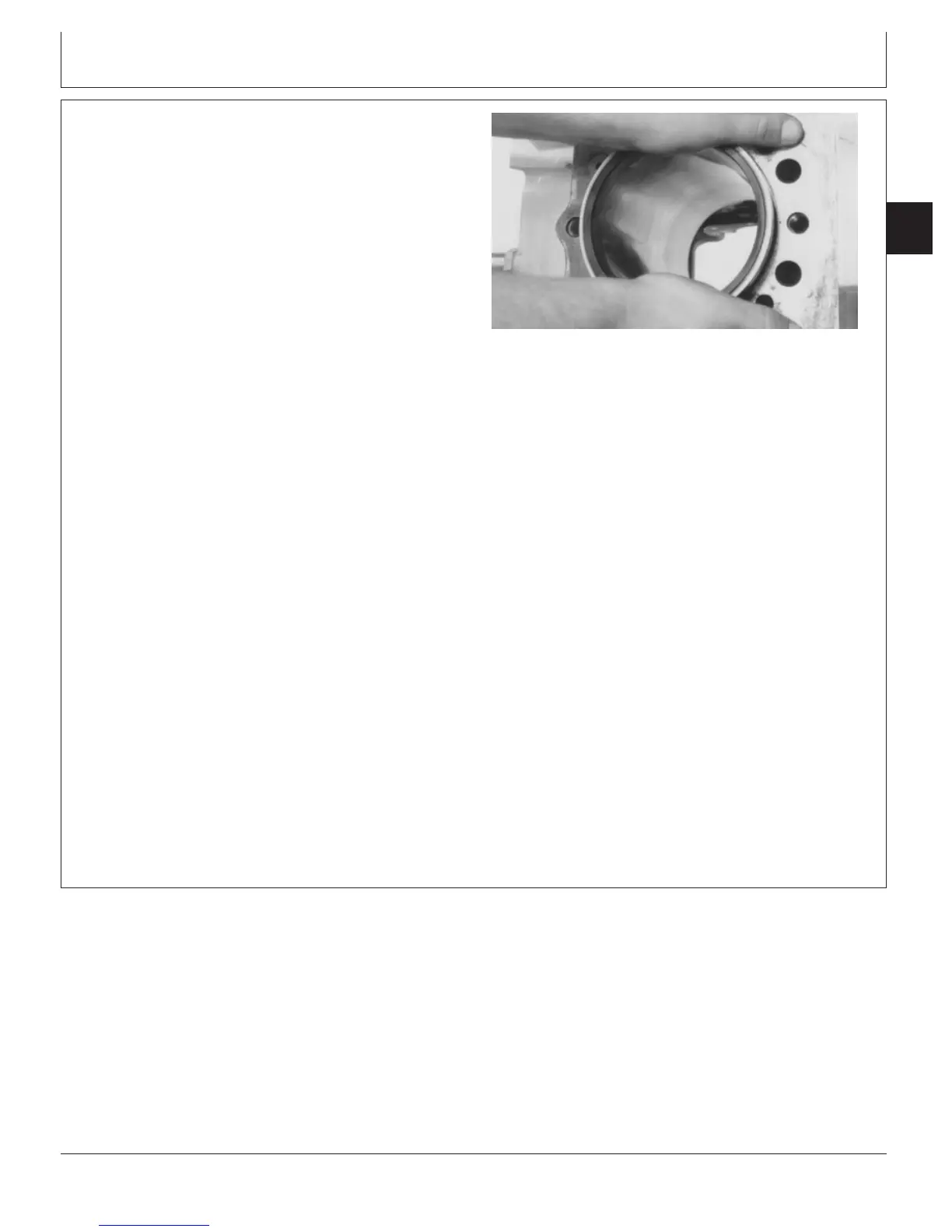

Installing Liner
NOTE: Piston and liner sets differ between engines. DO
NOT mix piston and liner sets. See parts catalog
for correct applications.
IMPORTANT: Install cylinder liner into same cylinder
block bore as removed. DO NOT scuff
the packing across the upper bore.
When liner ODs are pitted or eroded
and are under one-half the liner
thickness, rotate liners 90° from their
removed position. Rotate the pitted
section of the liner toward either the
front or rear of the engine.
If liners are not pitted or eroded,
rotation will not be necessary. Install
liners with the identifying mark
(stamped on flange), toward the front of
the engine.
1. Carefully place the cylinder liner, with packing installed,
into the cylinder block bore.
NOTE: A resistance will be felt when cylinder liner is
aligned in pilot bore.
2. Using only the pressure of both palms, the cylinder
liner should drop to a point nearly flush at the upper
flange of the cylinder liner and cylinder block.
Continued on next page
CTM100 (06APR04)
02-030-45
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=185
