Install Cylinder Liner O-Rings and Packings

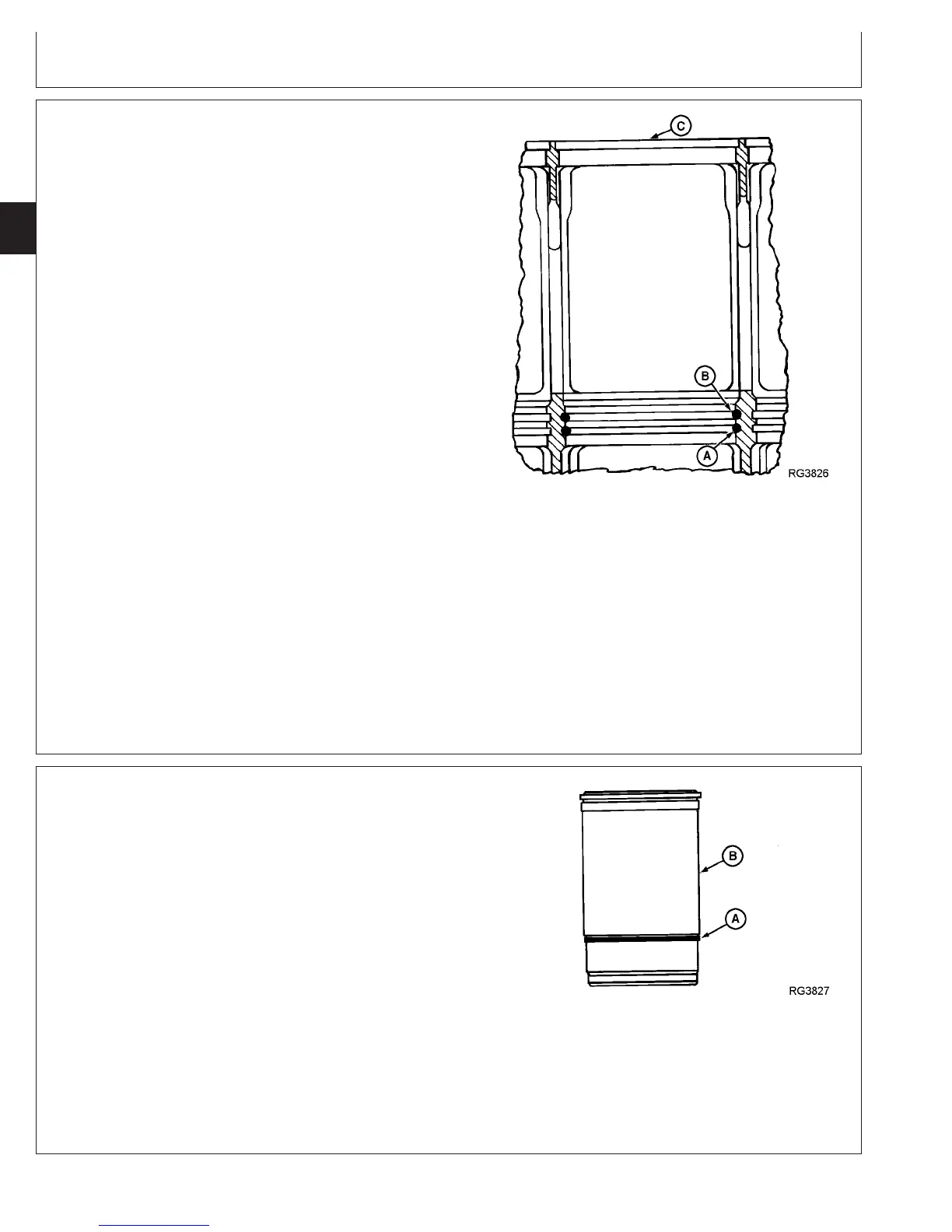

RG3826 –UN–04DEC97
Liner O-Rings and Packing
A—Black Viton O-Ring
B—Red Silicone O-Ring
C—Cylinder Block
NOTE: Piston and liner sets differ between engines. DO
NOT mix piston and liner sets. See parts catalog
for correct applications.
IMPORTANT: DO NOT use oil on cylinder liner
packing or O-rings. Oil can cause the
red packing to swell, which squeezes
liner and could possibly cause a scored
piston.
1. Pour AR54749 Soap Lubricant into a suitable
container.
2. Dip new packings and O-rings in soap before
installation. Do not leave packings or O-rings in soap
to soak.
3. Install the black viton O-ring (A) in the lower O-ring
groove of the cylinder block (C).
4. Install the red silicone O-ring (B) in the upper O-ring
groove of the cylinder block.
RG,RG34710,130 –19–01NOV00–2/2
RG3827 –UN–04DEC97
Install Square Packing on Liner
A—Neoprene Square Packing
B—Cylinder Liner
5. Turn cylinder liner (B) upside-down and install the
neoprene square packing (A) over outside of liner.
6. Slide packing down firmly against second shoulder on
the liner.
NOTE: Make sure the packing is not twisted.
7. Coat the liner packings, sealing area of the cylinder
liner, and cylinder block O-rings with liquid soap.
