Engine Rebuild Guide, Break-In and Tune-Up
02
010
4
RG,RG34710,47 –19–20AUG02–1/2

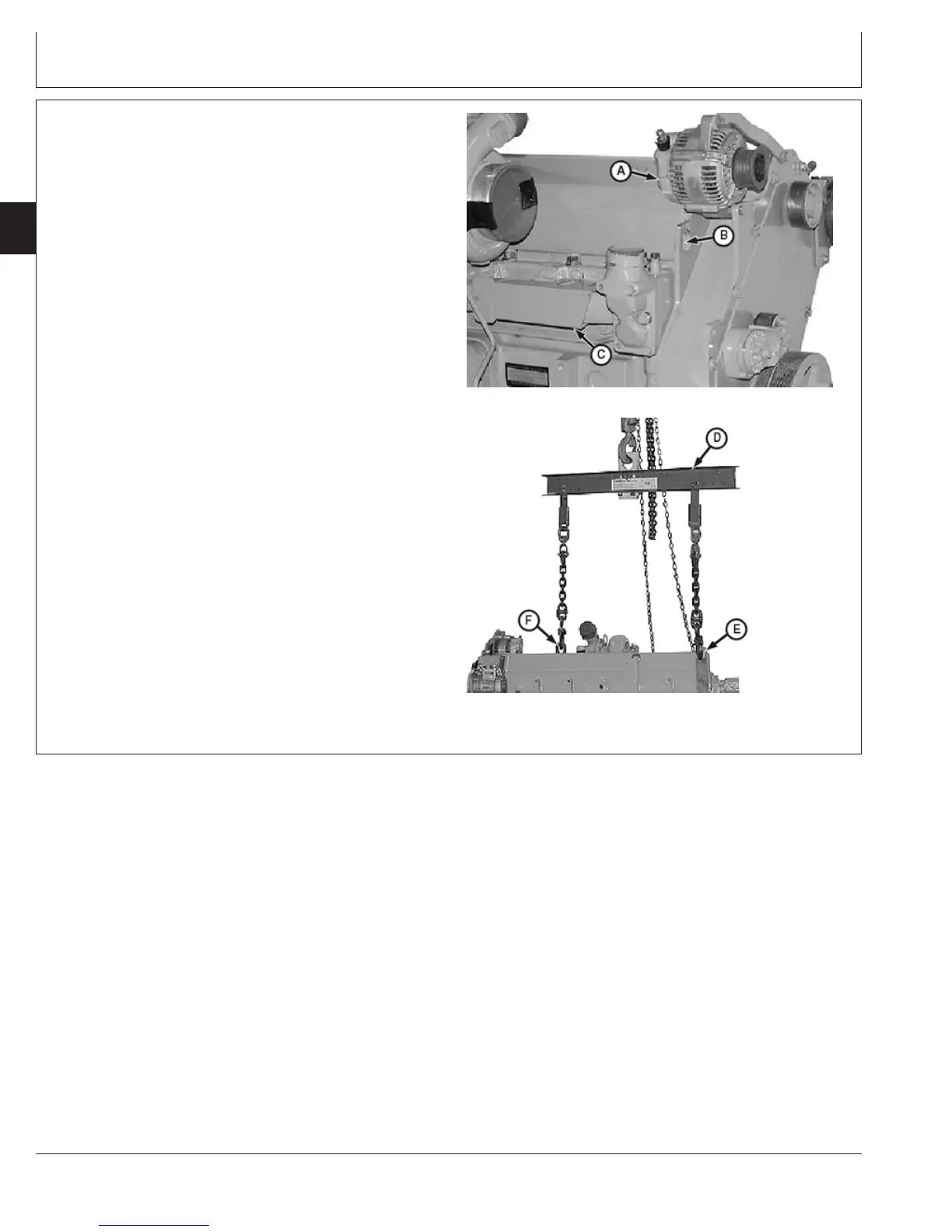

Engine Lifting Procedure
RG10349 –UN–13OCT99
Engine Lift Points
RG10350 –UN–13OCT99
Engine Lifting
A—Alternator
B—Front Plate Lift Eye
C—Exhaust Shield
D—JDG23 Lift Sling
E—R128000 Rear Lift Strap
1
F—R503481 (OEM & AT801 Applications Only) or
R128001 Front Lift Strap
1
1. Install R503481 (OEM & AT801 Applications Only) or
R128001 Front Lift Strap and R128000 Rear Lift Strap
(or attach sling to front plate lift eye) and tighten cap
screws to specification.
Specification
Engine Lift Strap Cap Screws—
Torque 90 N•m (66 lb-ft).............................................................................
NOTE: Lift spacing on sling is adjustable. Position each
lifting point so that engine hangs level when lifted.
2. Attach the JDG23 Engine Lifting Sling (D) to lift straps
and overhead hoist or floor crane of adequate lifting
capacity.
3. Carefully lift engine to desired location.
1
Can be ordered from parts catalog.
Continued on next page
CTM100 (06APR04)
02-010-4
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=52
