Perform Axial Bearing End Play Test
RG8497 –UN–21MAY98

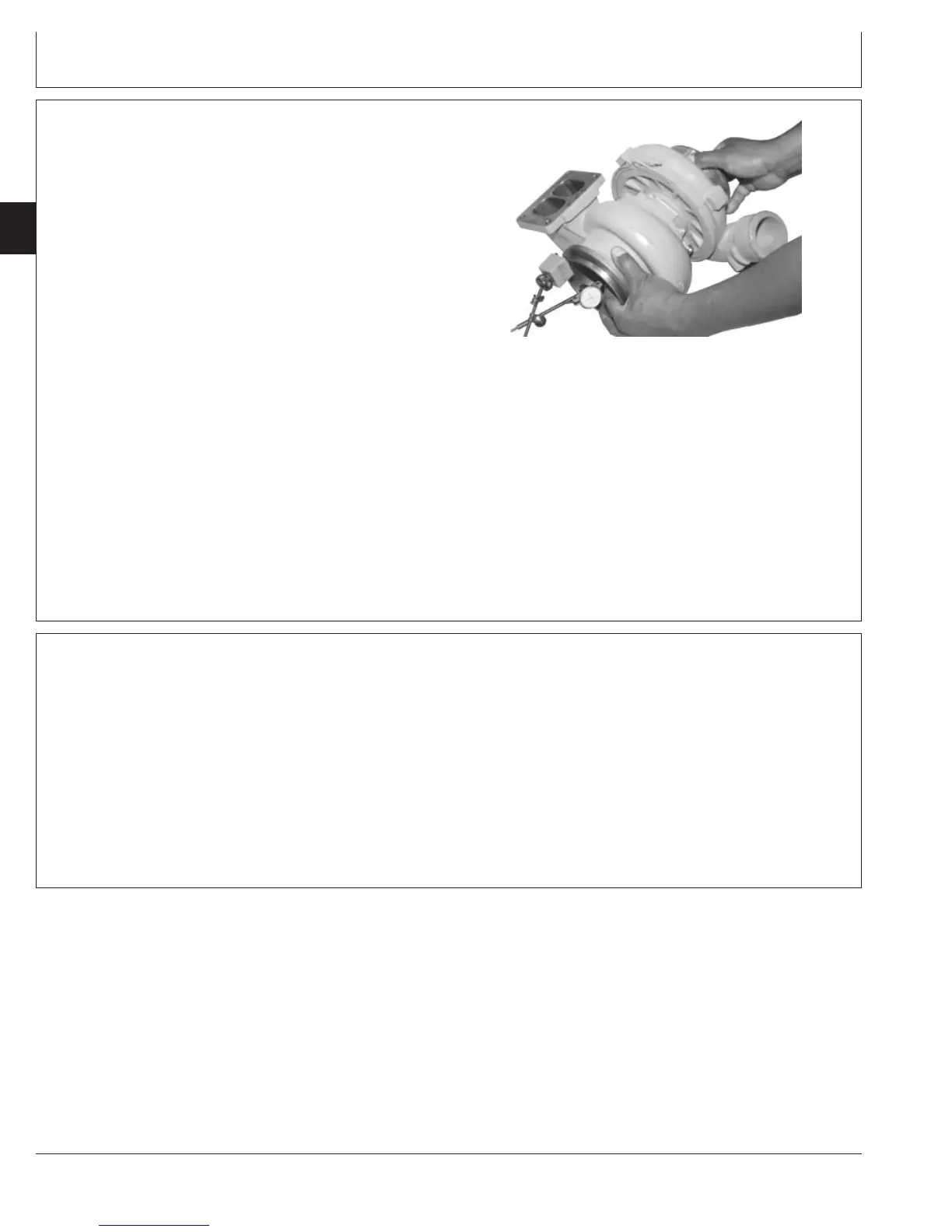

Measuring Axial End Play
This test will give an indication of the condition of the axial
bearing within the center housing and rotating assembly.
1. Mount magnetic base dial indicator so that indicator tip
rests on end of shaft. Preload indicator tip and zero
dial on indicator.
2. Move shaft axially back and forth by hand.
3. Observe and record total dial indicator movement and
compare to following specification.
Specification
Garrett Turbocharger Axial
Bearing—End Play 0.025—0.114 mm
(0.0010—0.0045 in.)
........................................................
Borg Warner Turbocharger Axial
Bearing—End Play 0.0635—0.1143 mm
(0.0025—0.0045 in.)
....................................................
If bearing end play is not within specification, replace
turbocharger.
RG,RG34710,245 –19–30SEP97–1/1
Repair Turbocharger
Turbochargers used on the engines covered in this
manual are available through service parts as a complete
remanufactured assembly only. Individual components for
repair are not available.
