Check for Exhaust Air Leaks
RG10651 –UN–30NOV99
Check for Exhaust Leaks

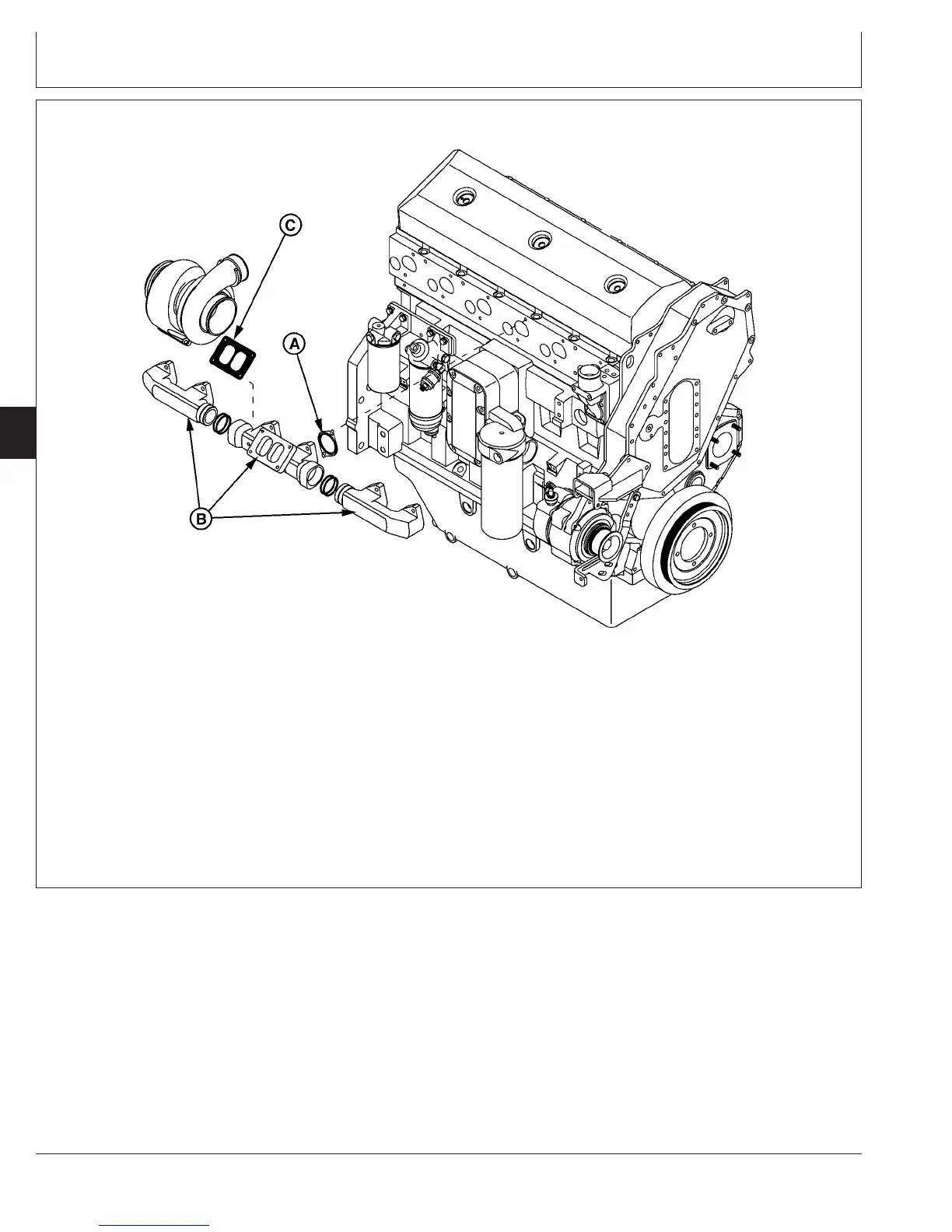

A—Exhaust Manifold Gasket B—Exhaust Manifold C—Turbocharger Gasket
Exhaust leaks, upstream of the turbocharger will cause
the turbocharger turbine to rotate at reduced speed
resulting in low boost pressure, low power, and
excessive black smoke.
Inspect the exhaust manifold gasket, the exhaust
manifold, and turbocharger gasket for damage and any
signs of leakage. Replace components as needed.
(See REMOVE, INSPECT AND INSTALL EXHAUST
MANIFOLD in Section 02, Group 080.)
