Crankshaft, Main Bearings, and Flywheel
02
040
7
RG,RG34710,154 –19–12SEP02–1/1

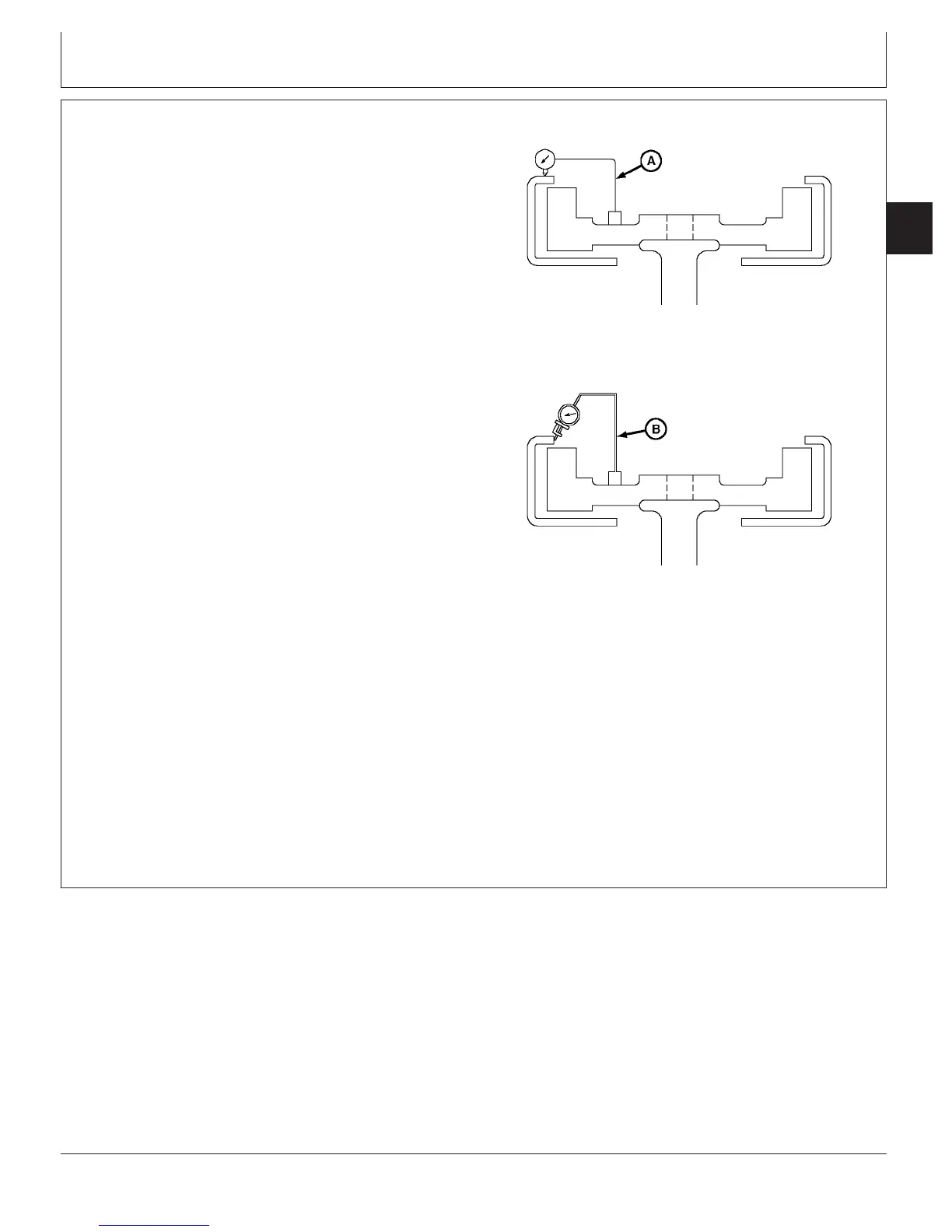

Check Flywheel Housing Face Runout
RG10271 –UN–02AUG99
Face Deviation
RG10272 –UN–02AUG99
Bore Eccentricity
A—Measure Face Deviation
B—Measure Bore Eccentricity
1. Mount dial indicator on flywheel. Set pointer to contact
PTO mounting surface on flywheel housing at right
angles (A). Pointer should not contact holes in flywheel
housing.
IMPORTANT: Maintain constant end pressure on
crankshaft to hold shaft against thrust
bearing when measuring flywheel
housing face runout.
2. Rotate flywheel by turning crankshaft. Read total dial
indicator movement and compare to specifications.
3. Remount set pointer to contact flywheel housing inner
bore (B).
4. Rotate flywheel by turning crankshaft. Read total dial
indicator movement and compare to specifications.
Specification
SAE 1 Flywheel Housing—
Maximum Face Deviation (A) 0.30 mm (0.012 in.).....................................
Maximum Bore Eccentricity (B) 0.30 mm (0.012 in.)..................................
SAE 2 Flywheel Housing—
Maximum Face Deviation (A) 0.28 mm (0.011 in.).....................................
Maximum Bore Eccentricity (B) 0.28 mm (0.011 in.)..................................
SAE 0 Flywheel Housing—
Maximum Face Deviation (A) 0.41 mm (0.016 in.).....................................
Maximum Bore Eccentricity (B) 0.41 mm (0.016 in.)..................................
CTM100 (06APR04)
02-040-7
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=203
