Crankshaft, Main Bearings, and Flywheel
02
040
3
RG,RG34710,150 –19–30SEP97–1/1
Check Crankshaft End Play
RG8538 –UN–20MAY98

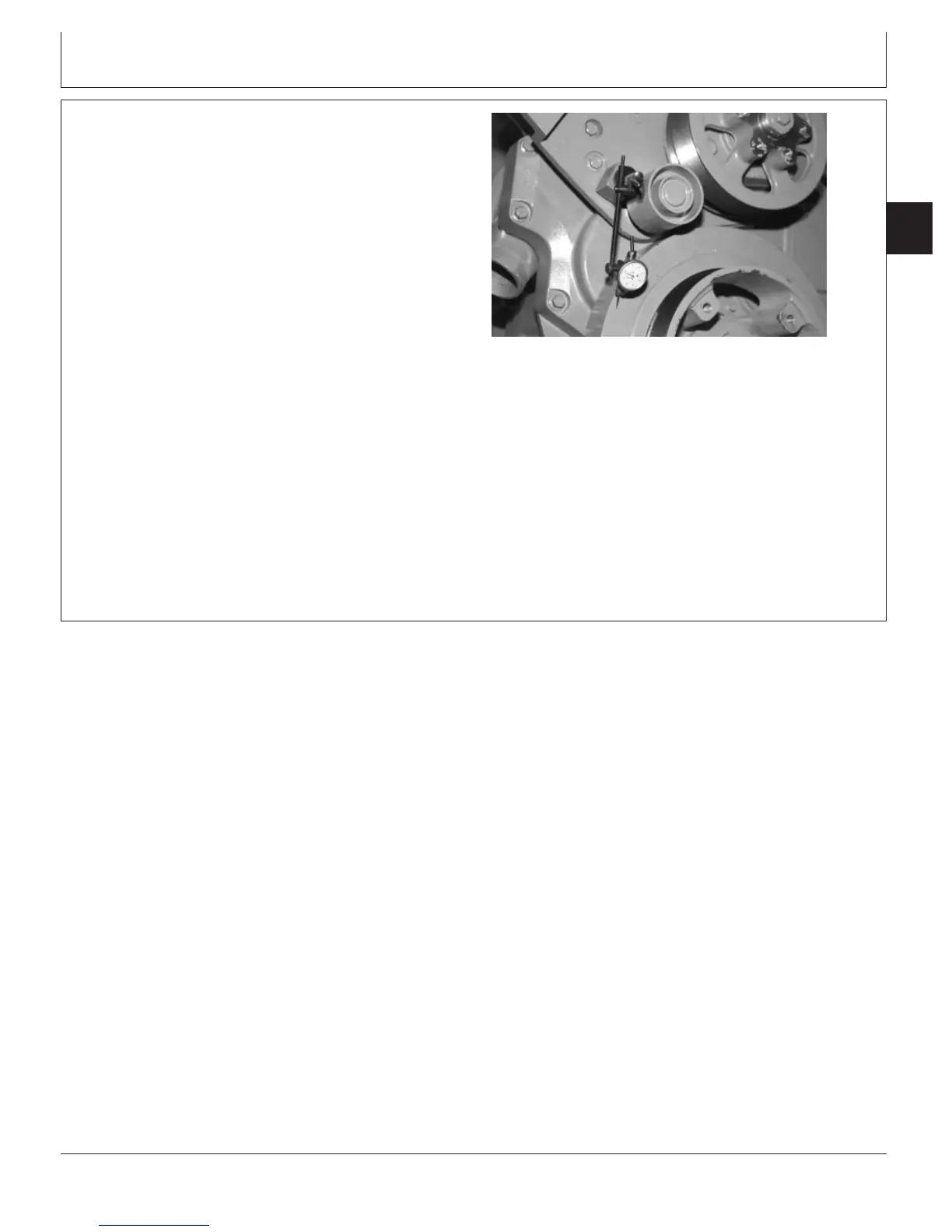

Checking Crankshaft End Play
1. Position dial indicator on end of crankshaft as shown.
2. Push crankshaft as far to rear of engine as possible.
3. Zero the dial indicator.
IMPORTANT: Do not apply too much pressure with
bar, as this could damage thrust
bearings.
4. Using a bar, gently pry the crankshaft as far forward as
possible and record end play.
Specification
Crankshaft—End Play 0.038—0.380 mm
(0.0015—0.0150 in.)
...................................................
NOTE: If end play is not within specifications, new thrust
bearings will usually restore proper end play.
CTM100 (06APR04)
02-040-3
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
