Cylinder Block, Liners, Pistons, and Rods
02
030
18
RG,RG34710,111 –19–30SEP97–2/2
R26165 –UN–13DEC88

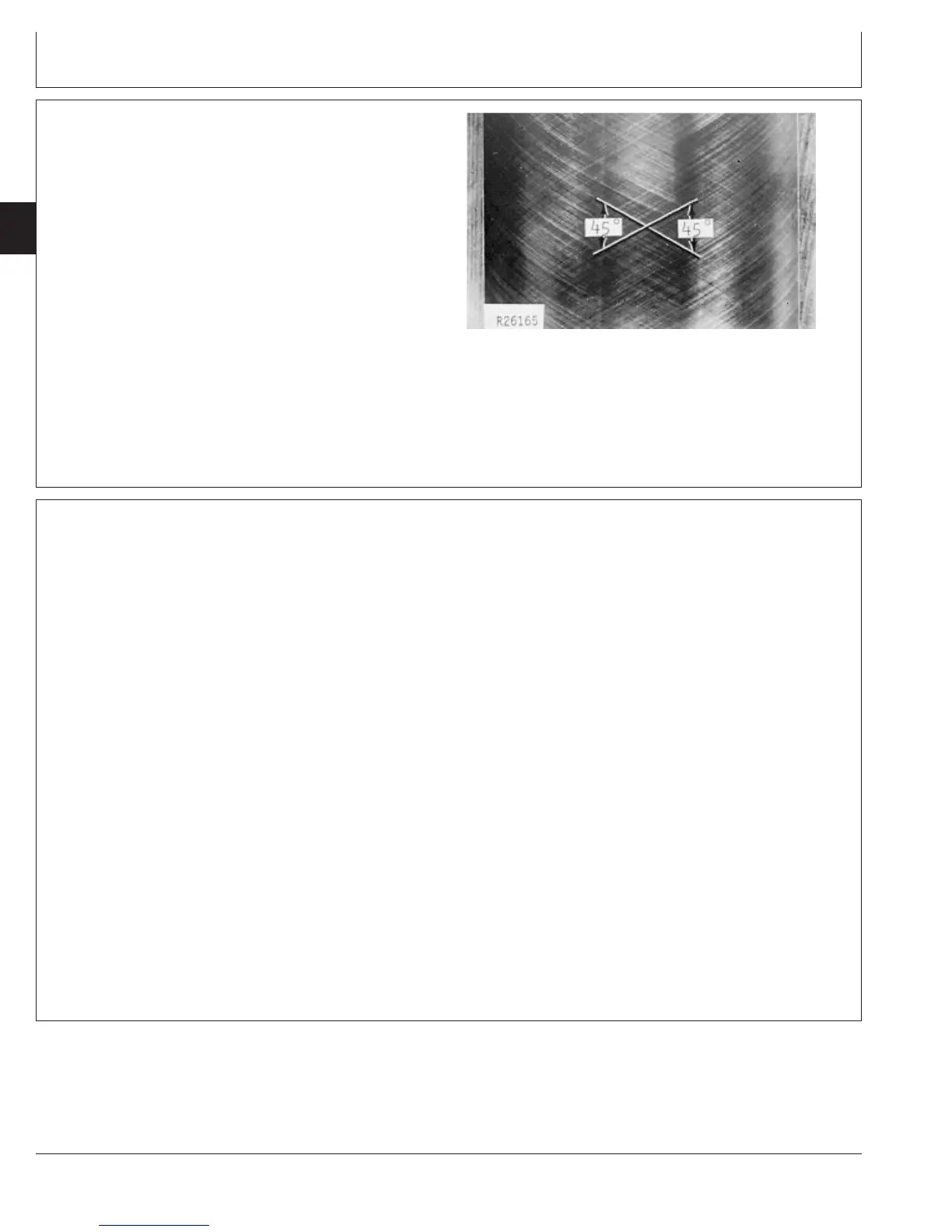

Liner Cross-hatch
3. Use D17006BR Hone according to instructions
supplied with tool to obtain a 45° cross-hatch pattern.
Thoroughly clean liners after deglazing. (See CLEAN
CYLINDER LINERS, next in this group.)
RG,RG34710,112 –19–30SEP97–1/1
Clean Cylinder Liners
1. Use a stiff bristle brush to remove all debris, rust, and
scale from OD of liners, under liner flange, and in
O-ring packing areas. Make certain there are no nicks
or burrs in areas where packings will seat.
IMPORTANT: Do not use gasoline, kerosene, or
commercial solvent to clean liners.
Solvents will not remove all the
abrasives from liner walls.
2. Thoroughly clean liner ID with a 50 percent solution of
hot water and liquid detergent.
3. Rinse thoroughly and wipe dry with a clean rag.
4. Swab out liner as many times as necessary with clean
SAE 10W oil.
5. Clean liner until a white rag shows no discoloration.
