Remove Oil Filter and Valve Housing/Oil
Cooler Cover and Valve Housing

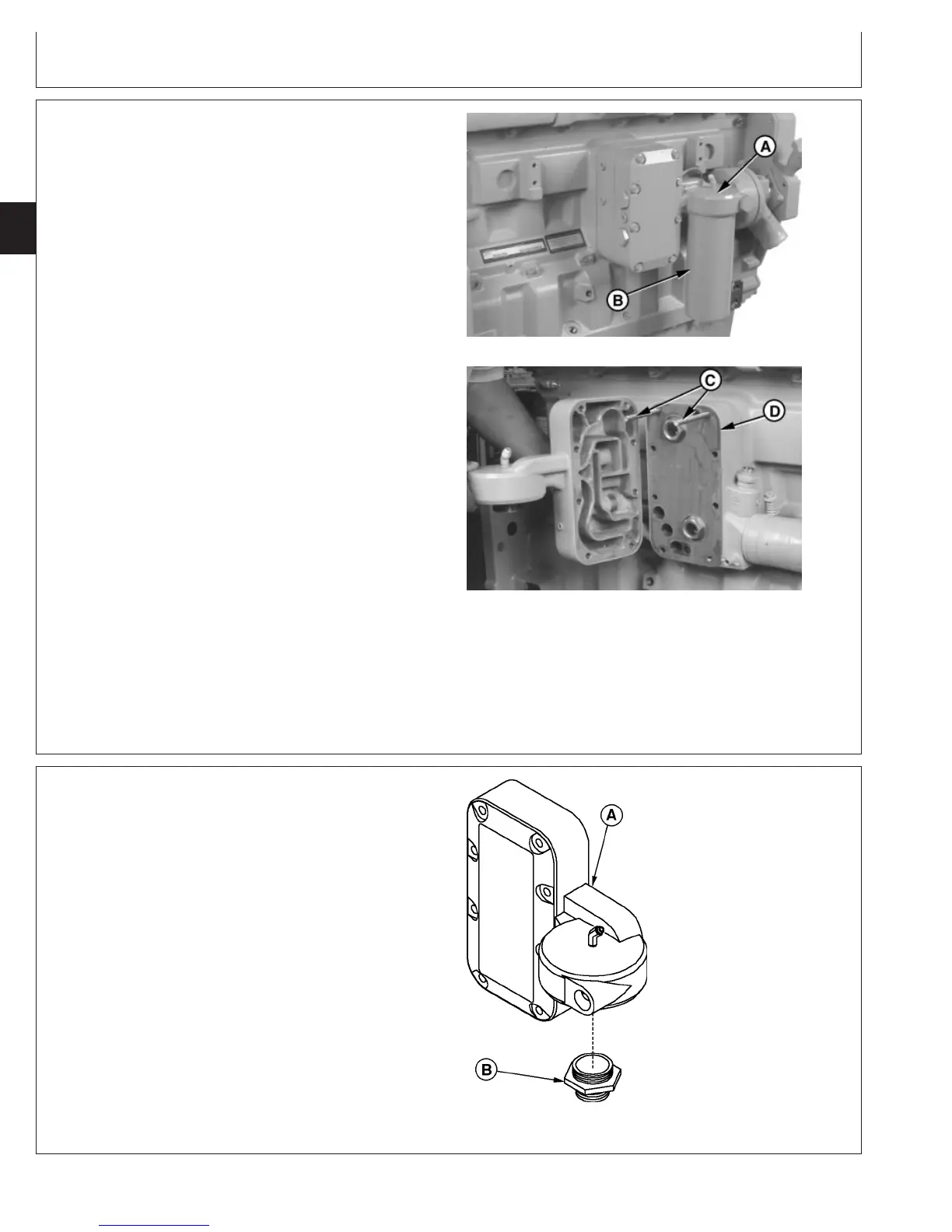

RG8245A –UN–06DEC97
Removing Filter and Valve Housing
RG8247A –UN–06DEC97
Filter and Valve Housing Removed
A—Oil Filter and Valve Housing
B—Oil Filter
C—Guide Pins
D—Gasket
NOTE: Standard oil filter/valve housing shown. Procedure
for removal of remote oil cooler cover and valve
housing is the same.
Guide pins (C) may be used as an aid for
removing and installing oil filter housing.
1. Disconnect turbocharger oil inlet line (shown removed)
from oil filter and valve housing (A).
2. Turn oil filter (B) counterclockwise using filter wrench
and remove filter from housing.
3. Remove eight cap screws securing oil filter and valve
housing to cylinder block and remove housing.
Remove and discard gasket.
4. Remove valves and thoroughly clean all bores and
passages in housing.
RG,RG34710,208 –19–30SEP97–1/1
Inspect and Replace Oil Filter Adapter
RG8433 –UN–19MAY98
Oil Filter Adapter
A—Oil Filter Housing
B—Oil Filter Adapter
1. Inspect threads on oil filter adapter (B) for damage.
Remove adapter from housing (A) and replace as
necessary.
2. Coat adapter-to-oil filter housing threads with
LOCTITE

271 (TY9474) Thread Lock and Sealer
before installing adapter in housing. Tighten adapter
securely.
LOCTITE is a registered trademark of Loctite Corp.
