Inspect Piston Pins and Rod Bushings
RG3172 –UN–04DEC97

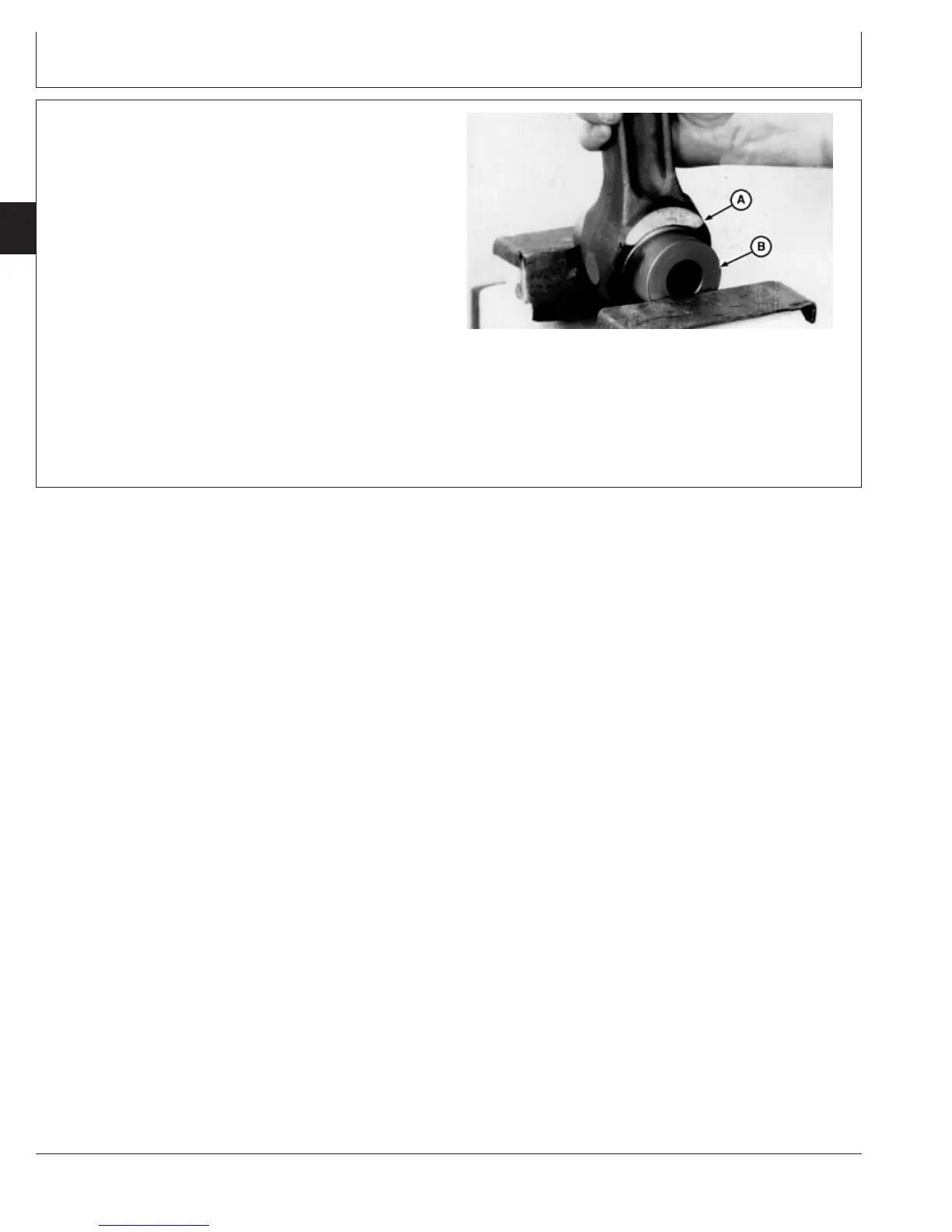

Installing Piston Pin in Rod Bushing
A—Connecting Rod
B—Piston Pin
1. Insert piston pin (B) through piston pin bushing and
carefully clamp in a soft-jawed vise.
2. Rotate connecting rod (A) back and forth several times
to make sure connecting rod moves freely on piston
pin.
3. Remove piston pin from connecting rod.
