Cylinder Block, Liners, Pistons, and Rods
02
030
13
RG,RG34710,109 –19–13AUG99–2/2
RG6668 –UN–05DEC97

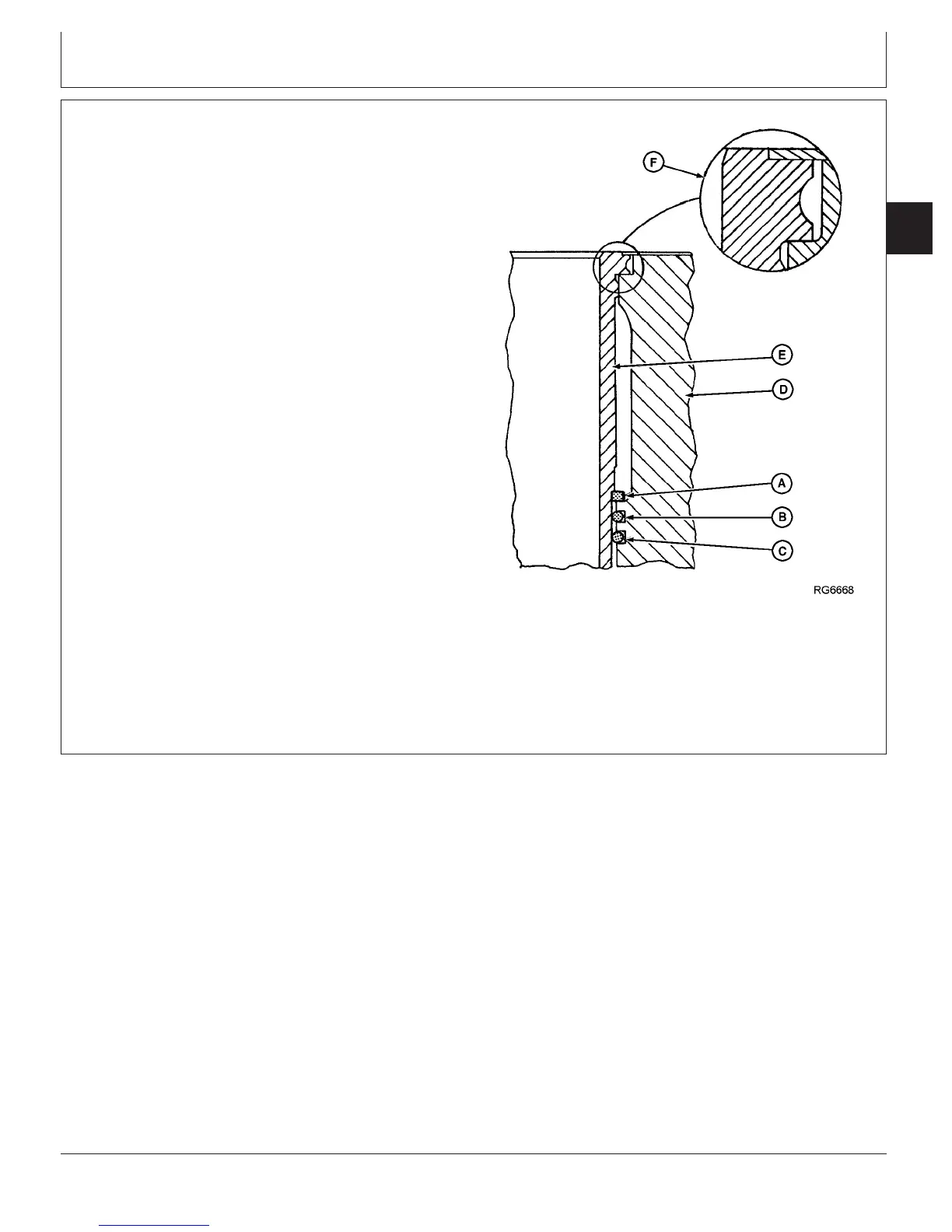

Cylinder Liner Packing
A—Square Packing (Neoprene)
B—Red O-Ring (Silicone)
C—Black O-Ring (Viton)
D—Cylinder Block
E—Cylinder Liner
F—Coolant Passage
4. Remove the cylinder liner square packing (A) from liner
(E).
5. Remove red O-ring (B) and black O-ring (C) from
cylinder block (D).
CTM100 (06APR04)
02-030-13
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=153
