Camshaft and Timing Gear Train
02
050
17
RG,RG34710,191 –19–25OCT00–13/14
RG8228A –UN–05DEC97

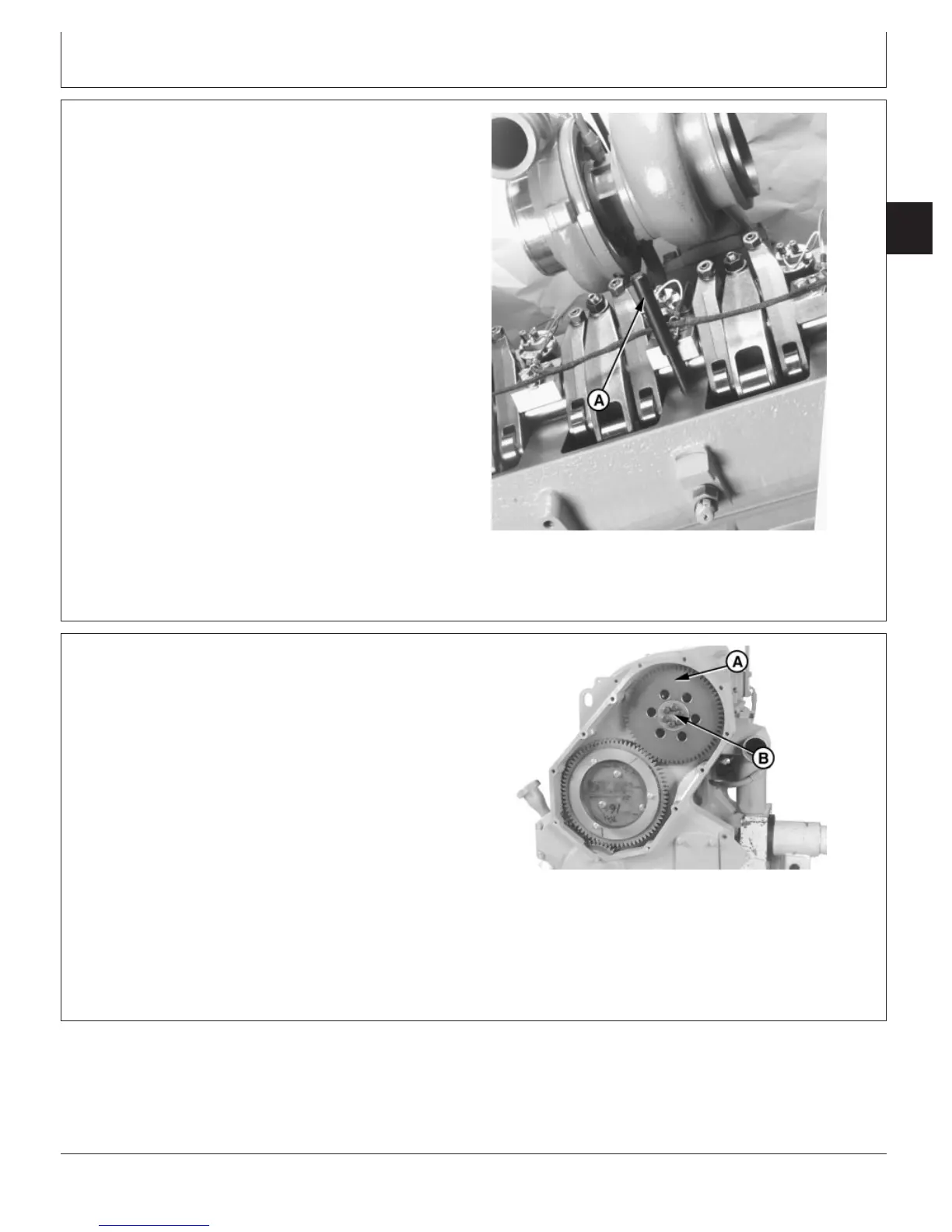

JDG691 Timing Pin in Camshaft
A—JDG971 Timing Pin
11. Rotate camshaft in bushings and install JDG971
Timing Pin (A) in camshaft timing slot.
12. Remove camshaft locking tool and install rocker arm
assembly. (See INSTALL ROCKER ARM ASSEMBLY
in Group 020.)
13. Install camshaft position sensor and tighten to
specifications.
Specification
Camshaft Position Sensor—
Torque 14 N•m (10 lb-ft).............................................................................
RG,RG34710,191 –19–25OCT00–14/14
RG8251B –UN–06DEC97
Installing Camshaft Gear
A—Camshaft Gear
B—Retainer Washer
14. Install camshaft gear (A) and retainer washer (B)
Install retainer cap screws finger tight. Adjust timing
gear backlash. See ADJUST FRONT TIMING GEAR
BACKLASH, earlier in this group, to set backlash and
for torque procedure on camshaft retainer cap
screws.
CTM100 (06APR04)
02-050-17
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=257
