Repair Tools and Other Materials
OUO1004,0000BC3 –19–01NOV00–13/16
RG8507 –UN–15SEP99

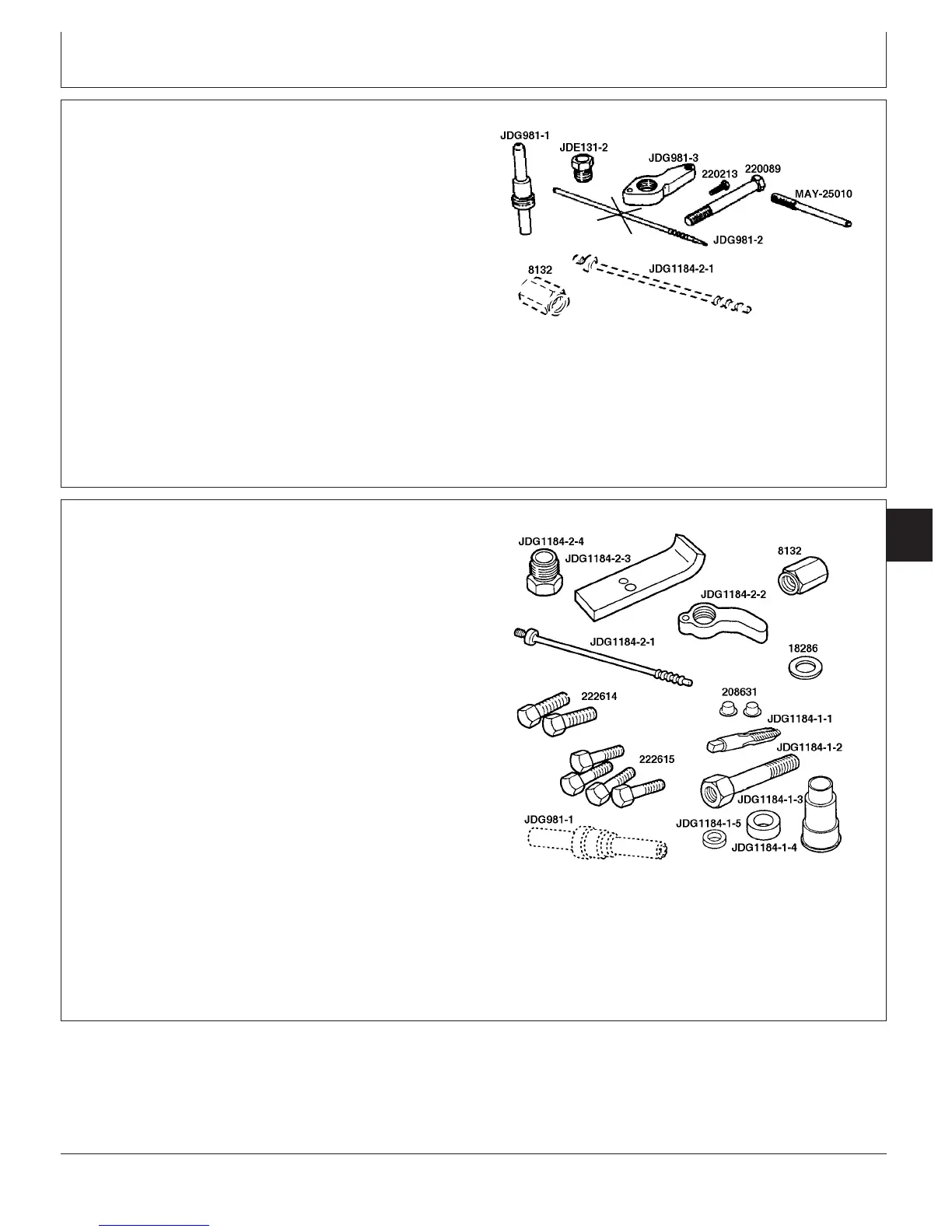

JDG981
Unit Injector Sleeve Installation Set..........JDG981
Use to replace unit injector sleeve. Unit injector sleeve tip
bore must be swedged to seal off coolant passages from
cylinder bore. Set consists of JDE131-2 Driver Nut,
JDG981-1 Guide Sleeve, JDG981-3 Guide Sleeve Holding
Bar, 220213 Hex Head Cap Screw (M8 x 1.25 x 40 mm),
220089 Hex Head Cap Screw (M16x2x150mm), and
MAY-25010 Punch. JDG981-2 Swedge is obsolete. Use
JDG1184-2-1 Swedge Arbor and 8132 Adapter from
JDG1184 EUI Nozzle Sleeve Replacement Kit in its place.
05
170
5
OUO1004,0000BC3 –19–01NOV00–14/16
RG10265 –UN–29JUL99
JDG1184
EUI Nozzle Sleeve Replacement Set........JDG1184
Used to install injector sleeves in cylinder head with head
installed in engine. Must be used with JDG981-1 Guide
Sleeve which can be ordered separately.
Continued on next page
