© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 129

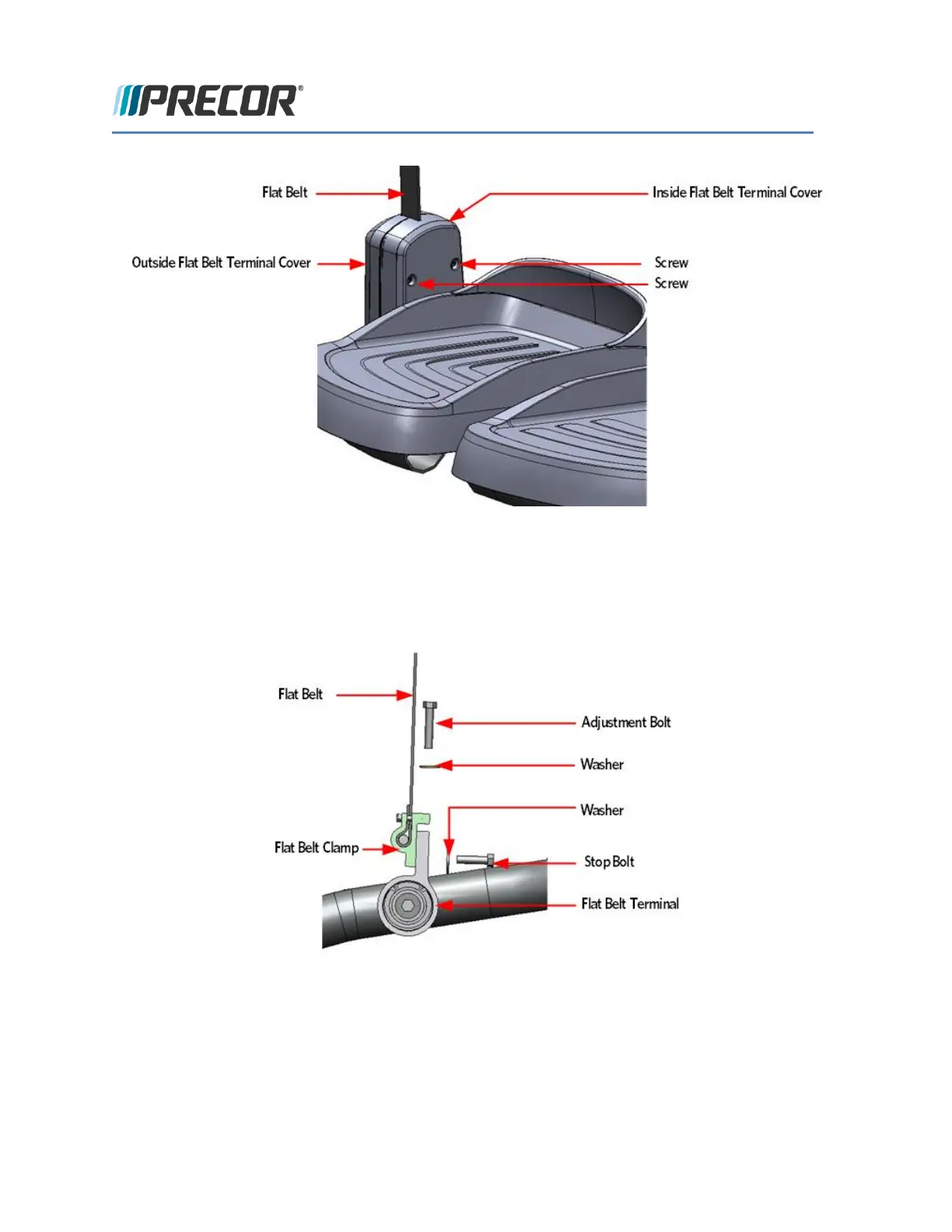

1 Remove the two bolts that adjust and secure the flat belt clamps to the flat belt terminals.
FIGURE 100: FLAT BELT CLAMP AND FLAT BELT TERMINAL
Upper Arm Cover Removal
2 Remove the four screws that fasten the inside upper arm covers to the upper arm.
3 Remove the screw that fasten the outside upper arm covers to the upper arm.
