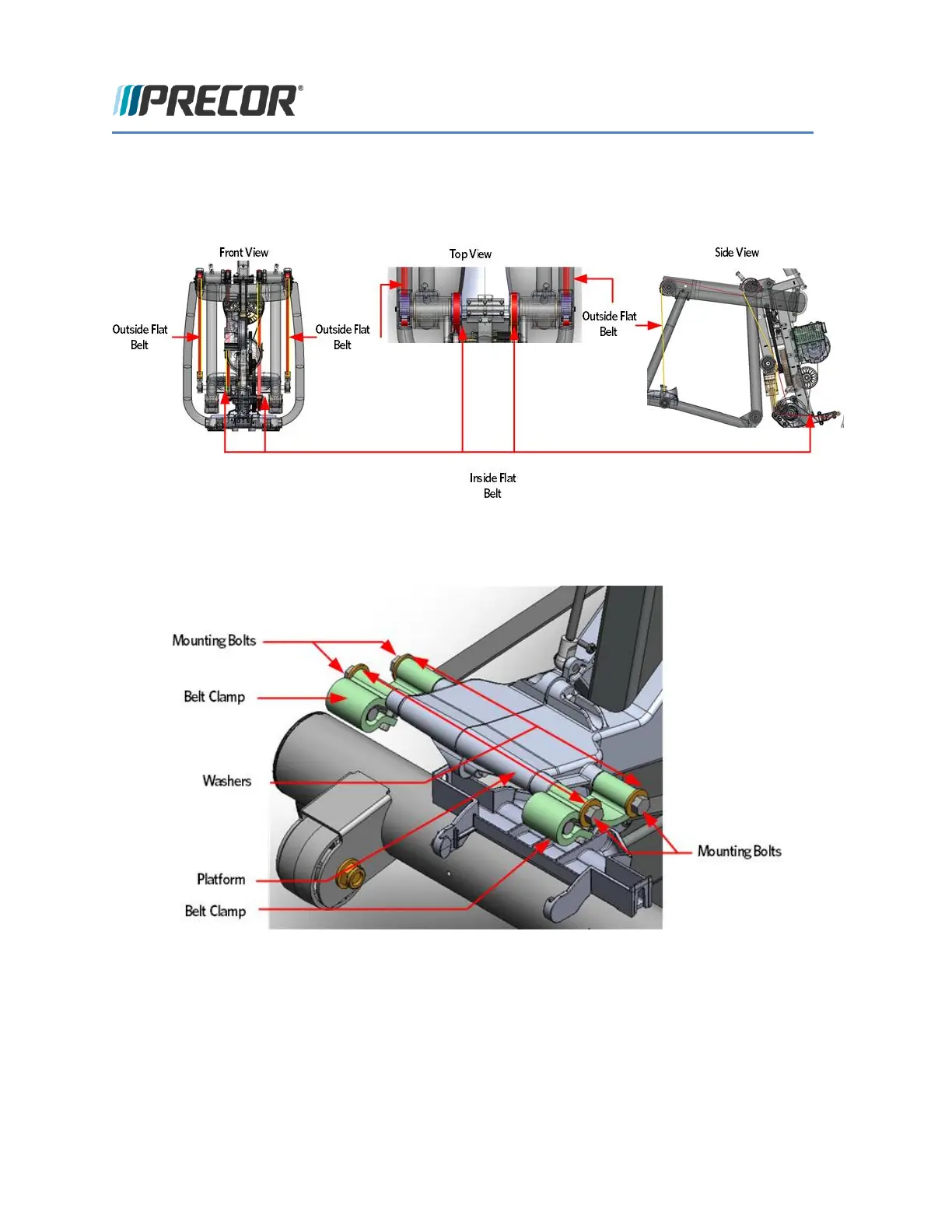

40 Ensue the flat belts are routed correctly through the pulleys. See illustration below for proper flat belt
routing.
FIGURE 120: FLAT BELTS
41 Secure the front flat belts terminals to platform.
FIGURE 121: FRONT BELT CLAMPS
Tie Rod Installation
42 Fasten each upper tie rod end to the cam assembly using the bolts and washers, torque the bolt to 300
inch pounds.
