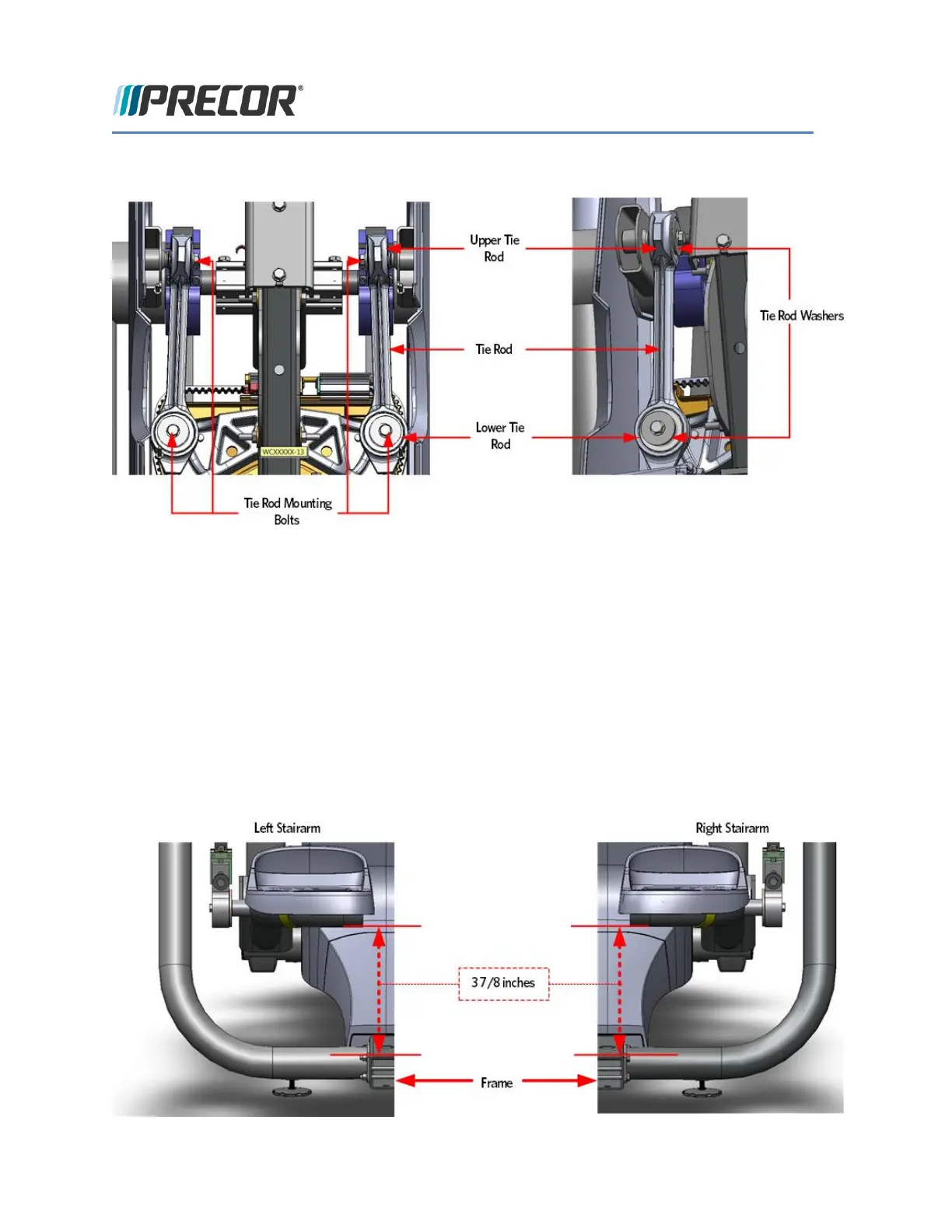

FIGURE 122: TIE RODS
Adjusting the Stairarm Pedal Height
43 Hand tighten the two bolts and washers that adjust and secure the flat belt clamp to the flat belt terminal.
44 Push one of the stairarm pedal's down to its lowest level. Measure the distance from the bottom of the
stairarm tube to the top of the center beam frame, the distance between the stairarm tube and the center
beam frame should be 3 7/8 inches.
FIGURE 123: STAIRARM HEIGHT MEASUREMENT
