45 If the measurement is too low or too high, tighten or loosen the adjustment bolt until the 3-7/8 inch
measurement is achieved.

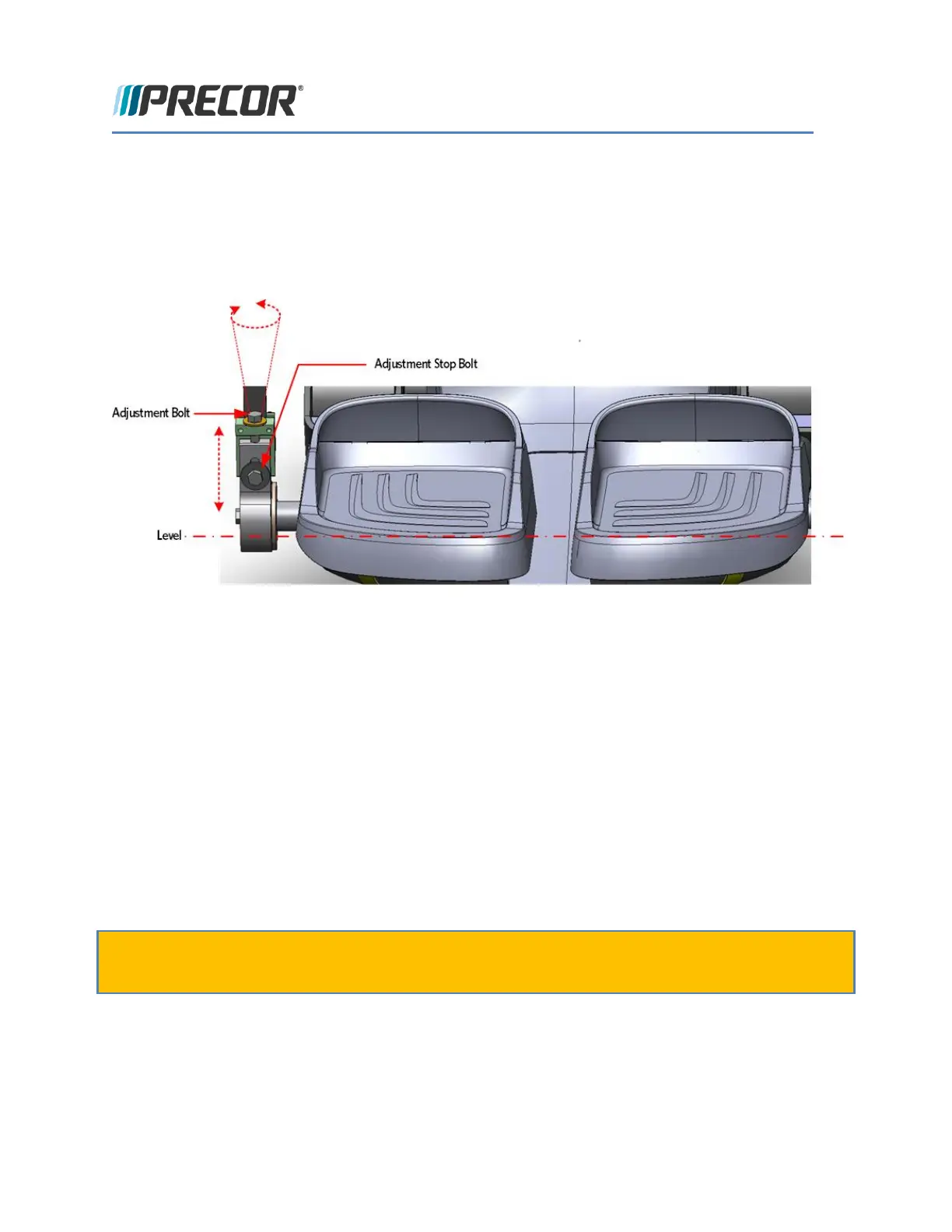

FIGURE 124: FLAT BELT TERMINAL ADJUSTMENT
46 Fully tighten the stop bolt, torque to 300 inch pounds or 25 foot pounds.
47 Replace the flat belt guard.
48 Replace the cam covers.
49 Replace the body covers.
50 Replace the vertical handle bars.
51 At the console enter the access code PAUSE,5,1,7,6,5,7,6,1, to enter into the diagnostics software.
Navigate to the STRIDE COUNT RESET section and reset the flat belt stride count.
52 Fully check the operation of the AMT.
Replacing a Front Arm Assembly - Without Flat Belts and Non-
Press Fit Cams. (Prior to 4/3/2013)
Caution: Replace only one front arm at a time. The cams of the two front arms are in opposing positions
from one another, replacing one front arm at time will prevent the cams from being incorrectly positioned.
