© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 149
Flat Belt Removal - Upper Arm Cam
Note: Any time the flat belt terminal screws are removed from the flat belt clamp or cams, the screws
must be discarded and replaced with new screws.
7 Remove and discard the two 1/4-20X1 flat belt cam clamp screws and shims that secure the flat belt to
the clamp.

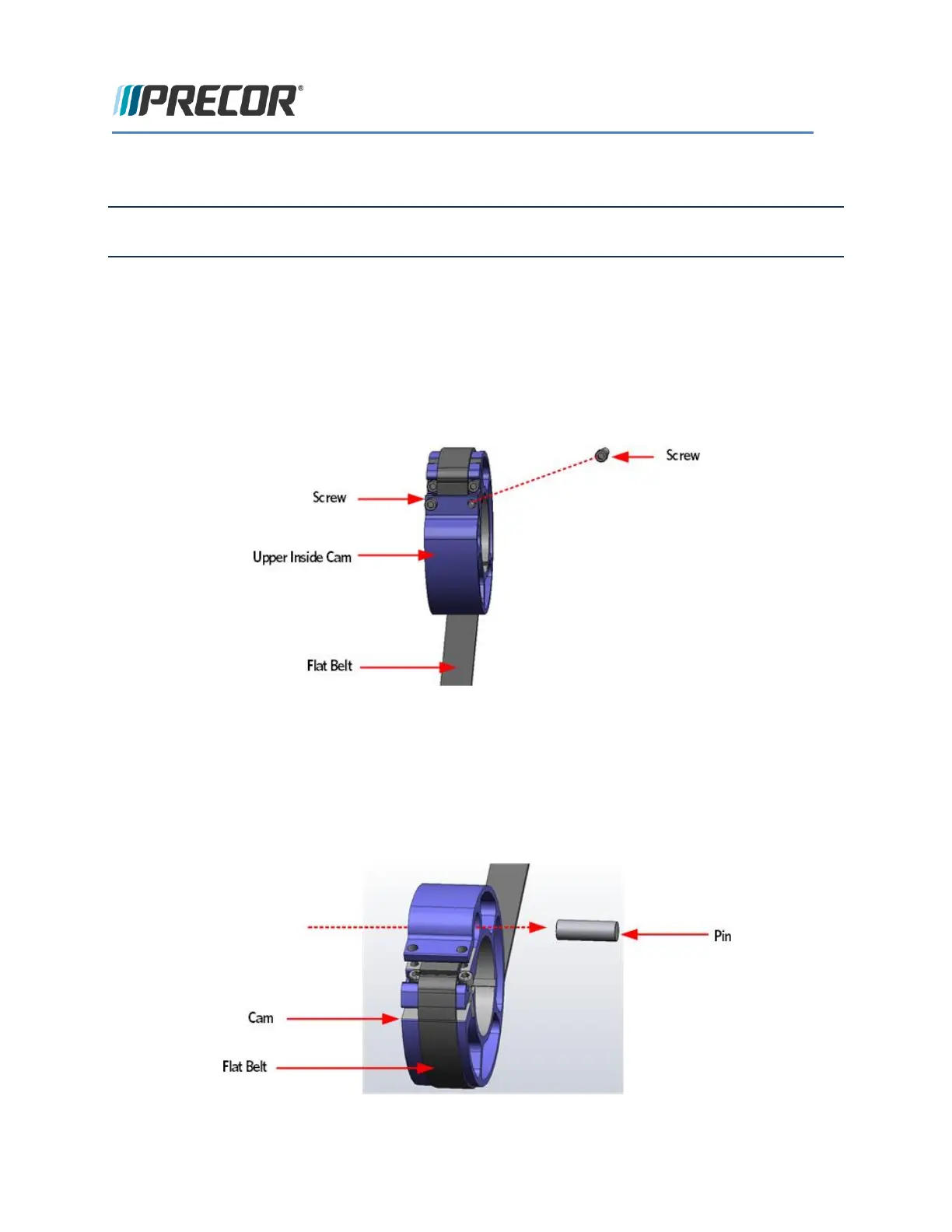

FIGURE 126: UPPER INSIDE CAM SCREW REMOVAL
8 Using a screw driver tip, push out the pin from the flat belt loop and cam clamp and then slide the flat
belt out of the cam clamp. Remove the flat belt.
FIGURE 127: UPPER INSIDE CAM PIN REMOVAL
9 Repeat the process to remove the outside flat belt from the front arm cam.
