Tie Rod Removal
10 Remove the tie rod mounting bolt and washer that secures the upper tie rod end to the upper arm axle.

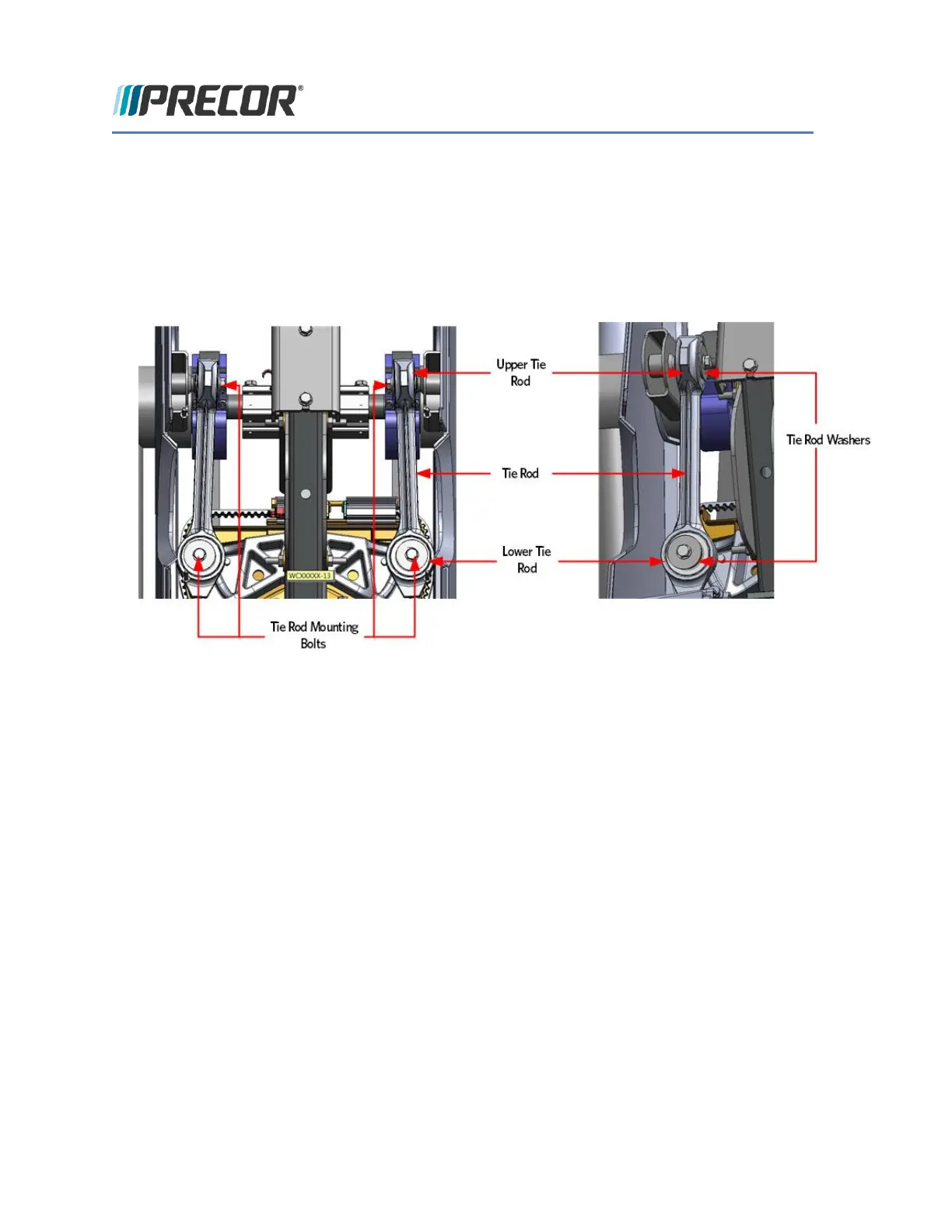

FIGURE 128: TIE RODS
Front Arm Removal
11 Remove the shoulder bolt that secures the outside cam tube to the upper arm.
FIGURE 129: FRONT ARM MOUNTING BOLT
