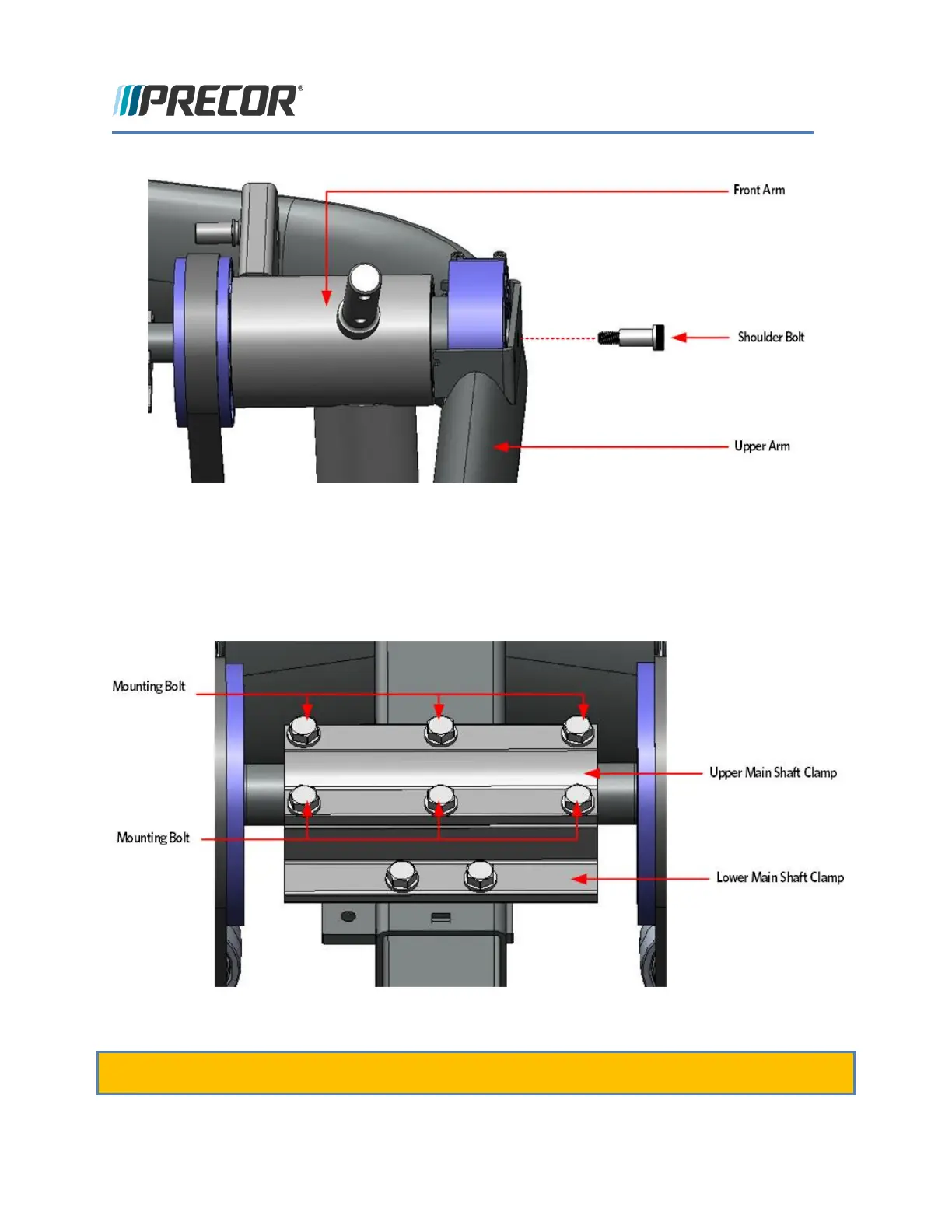

12 Remove the six bolts that secure the upper main shaft clamp to the lower main shaft clamp. Remove
the top main shaft clamp.
FIGURE 130: MAIN SHAFT CLAMP BOLTS
Caution: It is recommended to have assistance available for the following step(s).
