6 Use the following sequence to ensure the upper arm main shaft is properly secures to the front arm
shaft; torque the bolts to 160 inch pounds.

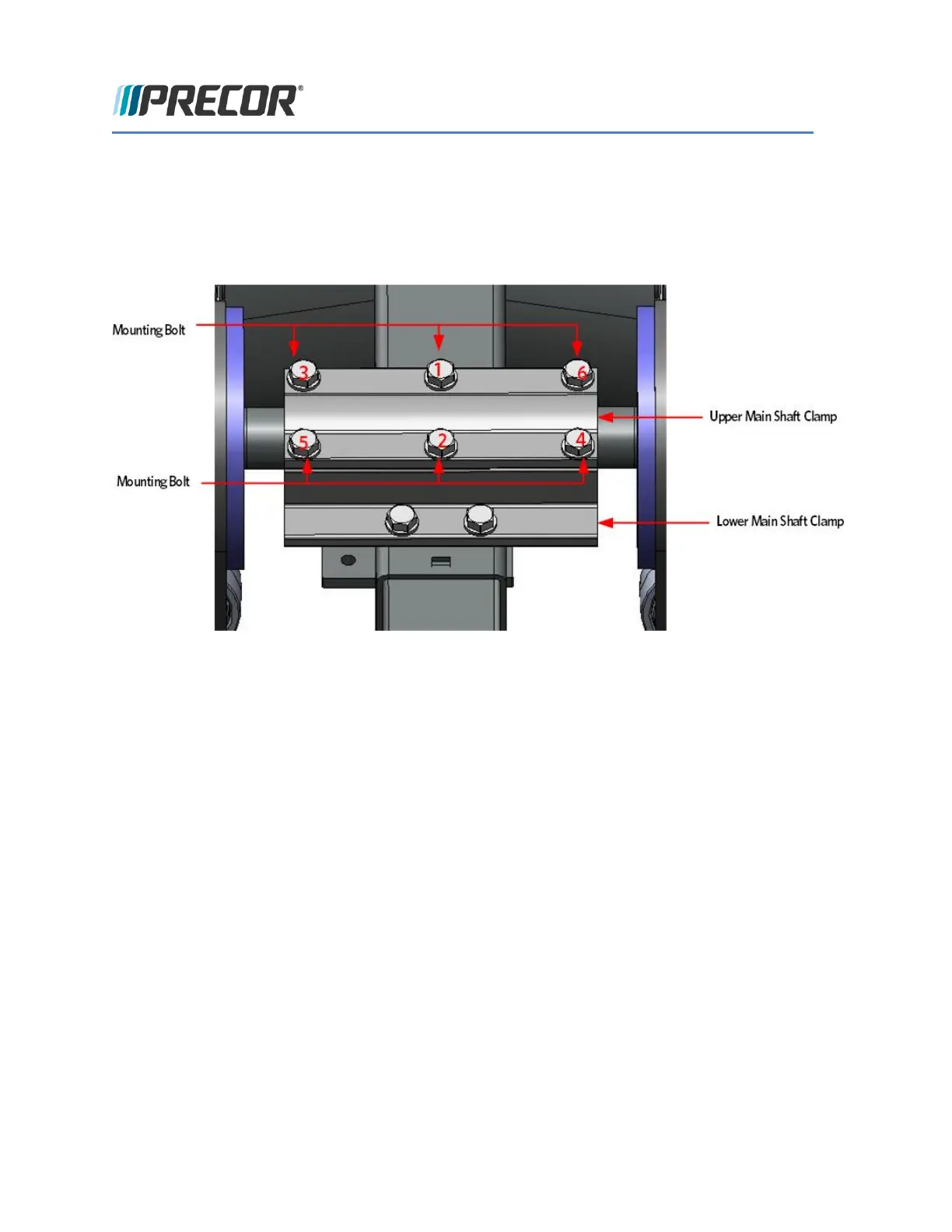

FIGURE 135: MAIN SHAFT CLAMP BOLTS- TORQUE SEQUENCE
7 Secure the front arm shaft to the upper arm using the shoulder bolt, torque to 300 inch pounds or 25
foot pounds.
FIGURE 136: FRONT ARM MOUNTING BOLT
