4 Note: ensure the flat belts are positioned correctly before installing the front arm. With assistance, lift
the front arm and then set the front arm into the lower main shaft clamp and upper arm.

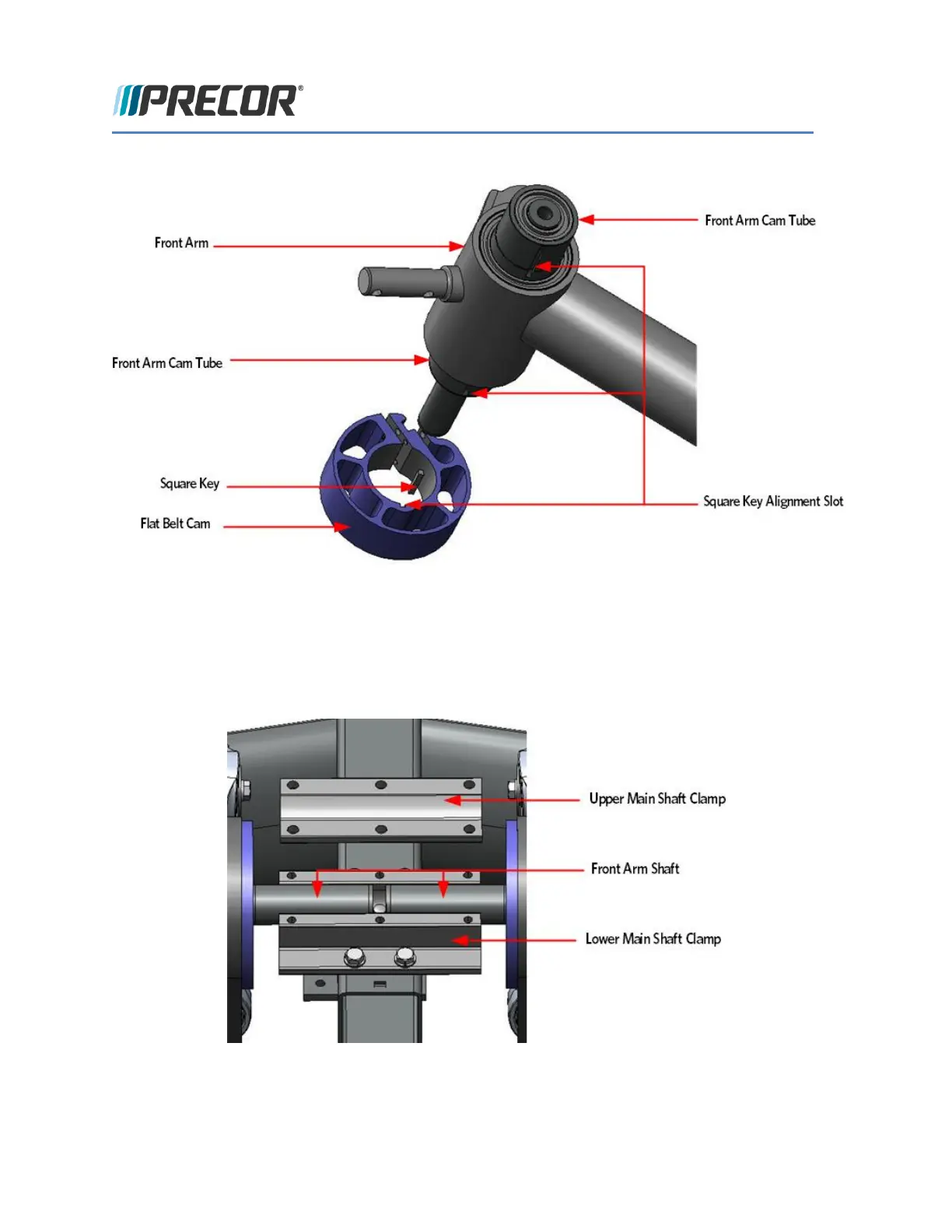

FIGURE 134: FRONT ARM SHAFT AND MAIN CLAMP
5 Insert and finger tighten the bolt for the outside cam tube to the upper arm.
