© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 179

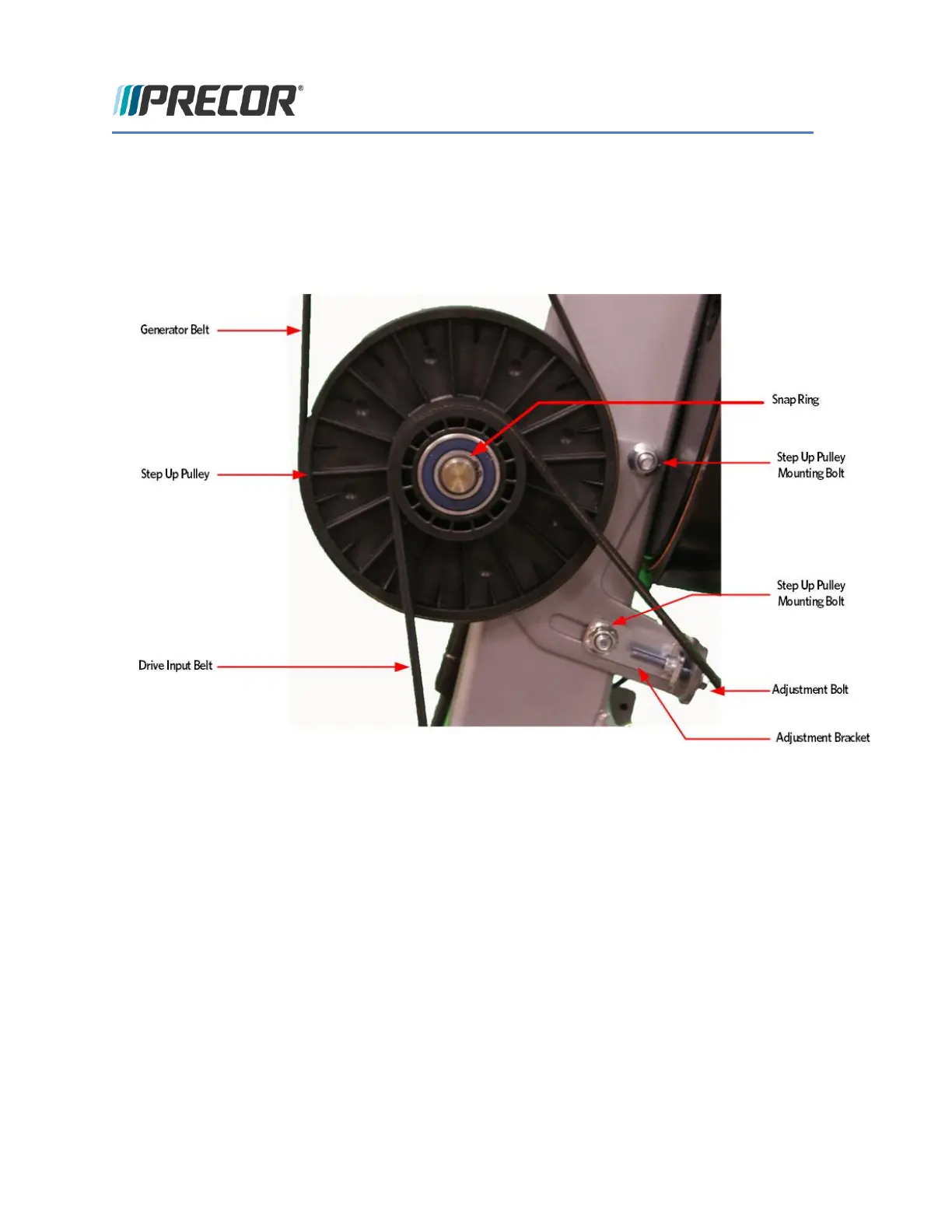

FIGURE 163: STEP UP PULLEY
5 Remove the snap ring from the flat belt pulley shaft located on the drive input pulley. Remove the pulley
and wave washer.
FIGURE 164: CRANK ARM FLAT BELT PULLEY
