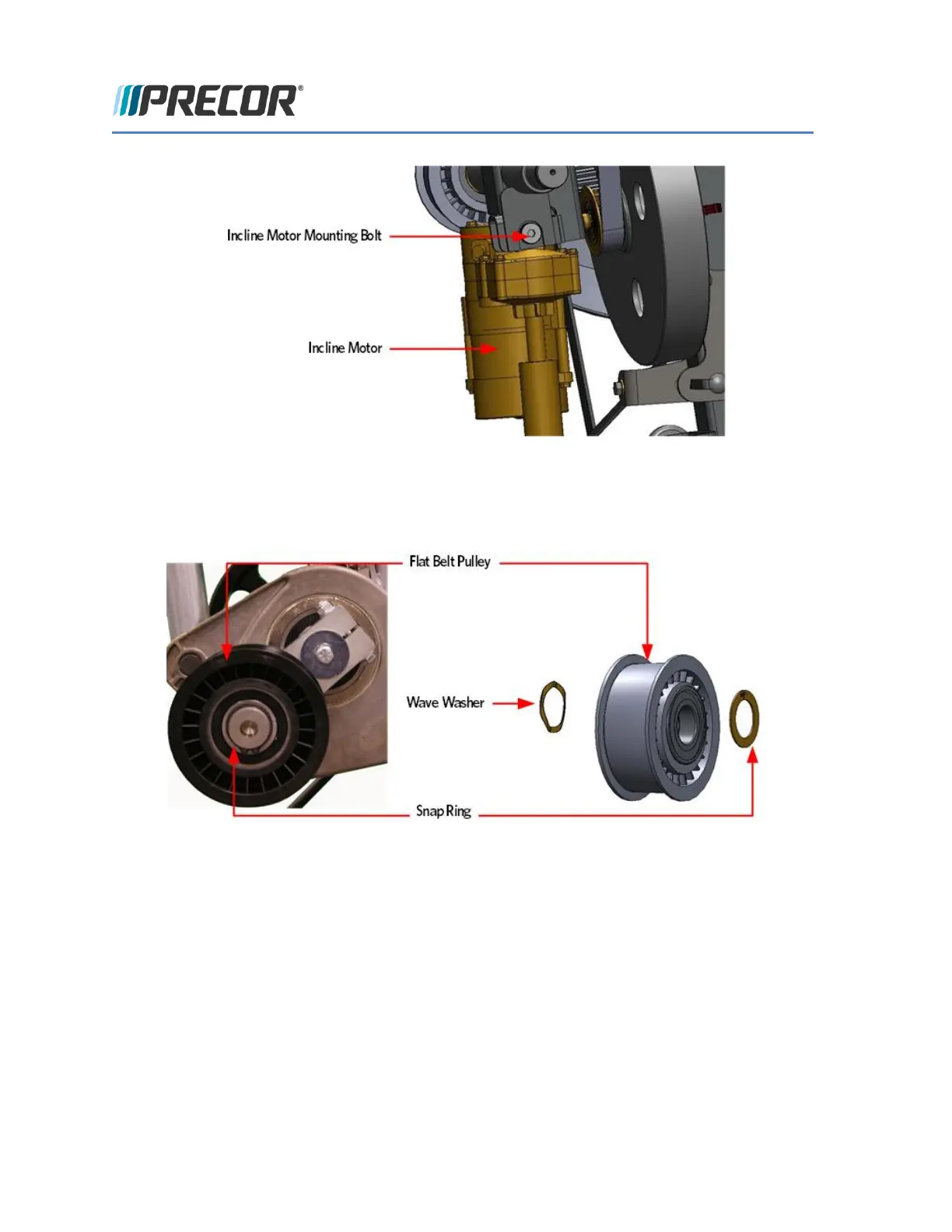

FIGURE 174: CRANK ARM FLAT BELT PULLEY
11 Loosen the crank arm pinch bolt, washer and lock nut.
12 To loosen the crank arm mounting bolt, insert a socket extension about twelve inches long or equivalent
in the drive input housing cavity, just below the crank arm to prevent rotation Remove the crank arm
bolt, washer and crank arm. It may be necessary to use a Pitman arm puller or a 4 to 6 inch gear puller
to remove the crank arm. Do not use a hammer or mallet to remove the crank arm.
