© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 189

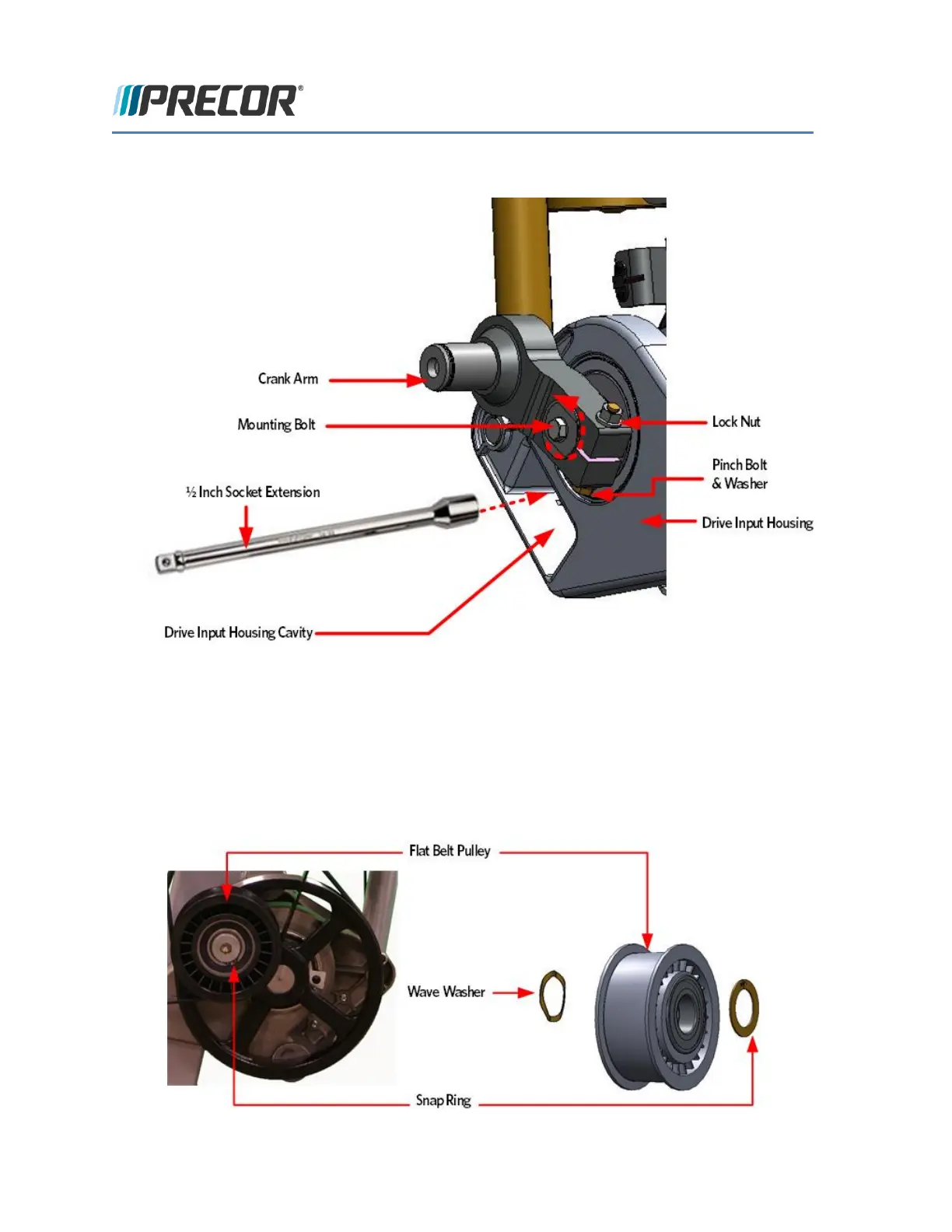

FIGURE 175: CRANK ARM BOLT REMOVAL/ INSTALLATION
13 Remove the snap ring from the flat pulley shaft located on to the drive input pulley, remove the pulley
and wave washer.
FIGURE 176: DRIVE INPUT FLAT BELT PULLEY
