© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 190
14 Remove the screw and square washer that secures the drive input pulley assembly to the drive input
housing. Pull the drive input pulley out of the housing.
Note: If necessary a rubber mallet can be used to dislodge the input pulley assembly from the housing by
tapping on the input shaft.

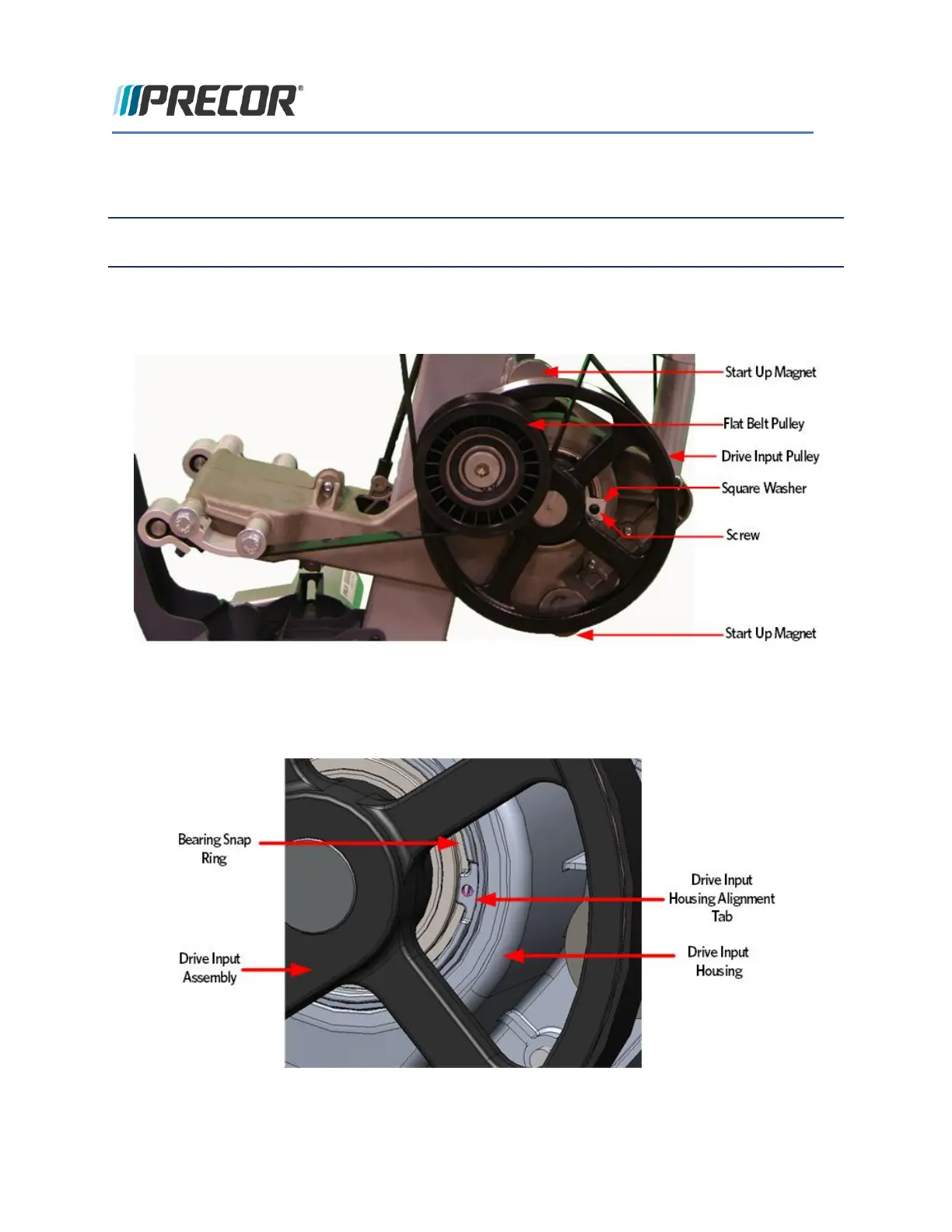

FIGURE 177: DRIVE INPUT ASSEMBLY
FIGURE 178: DRIVE INPUT ASSEMBLY ALIGNMENT
