15 Remove the four mounting bolts and washers that secure the flat belt clamps to the Lift Arm.

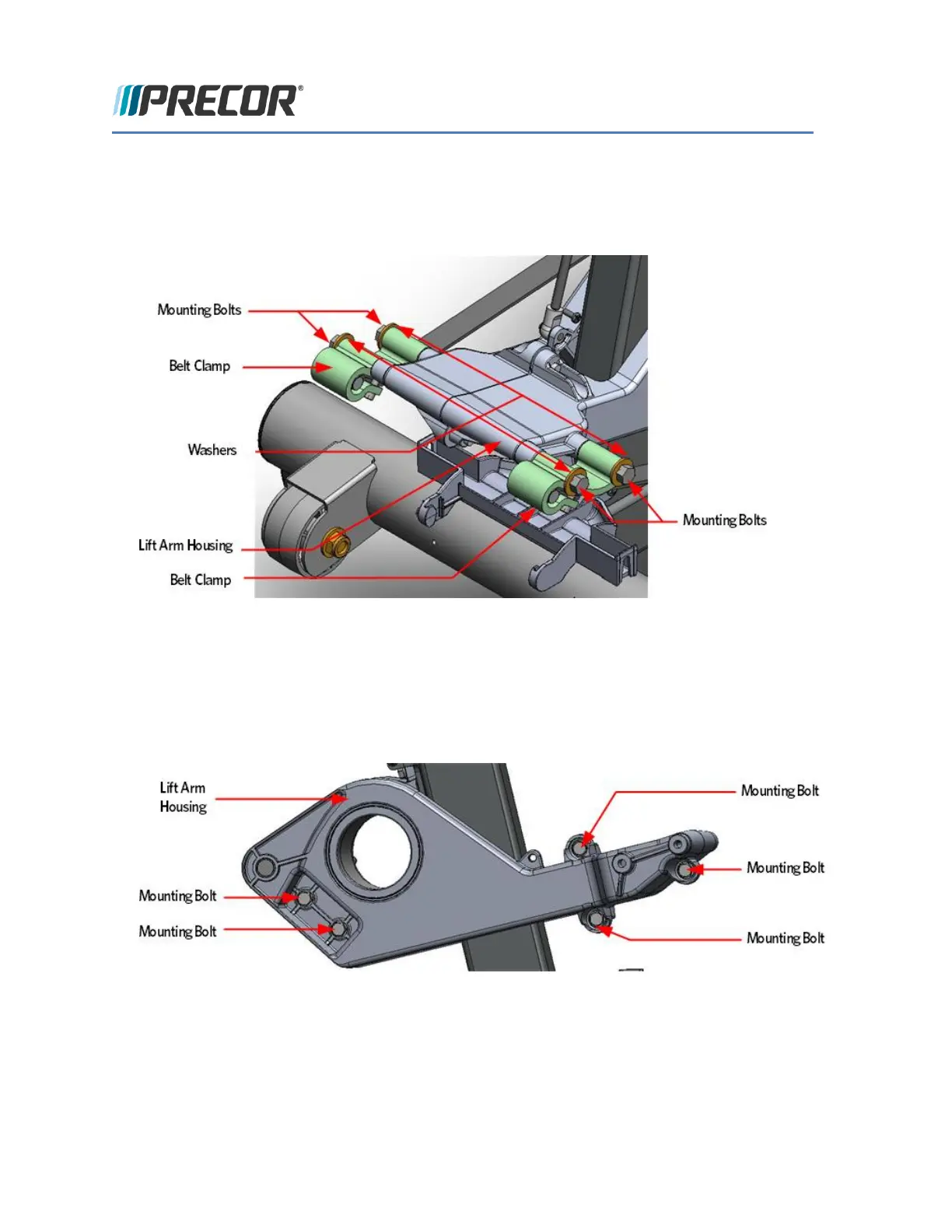

FIGURE 179: LIFT ARM AND BELT CLAMPS
16 Remove the five mounting bolts that secure the left and right side arm housings to the input housing.
FIGURE 180: LIFT ARM MOUNTING BOLTS
17 Separate the left and right side arm housings from the input housing.
