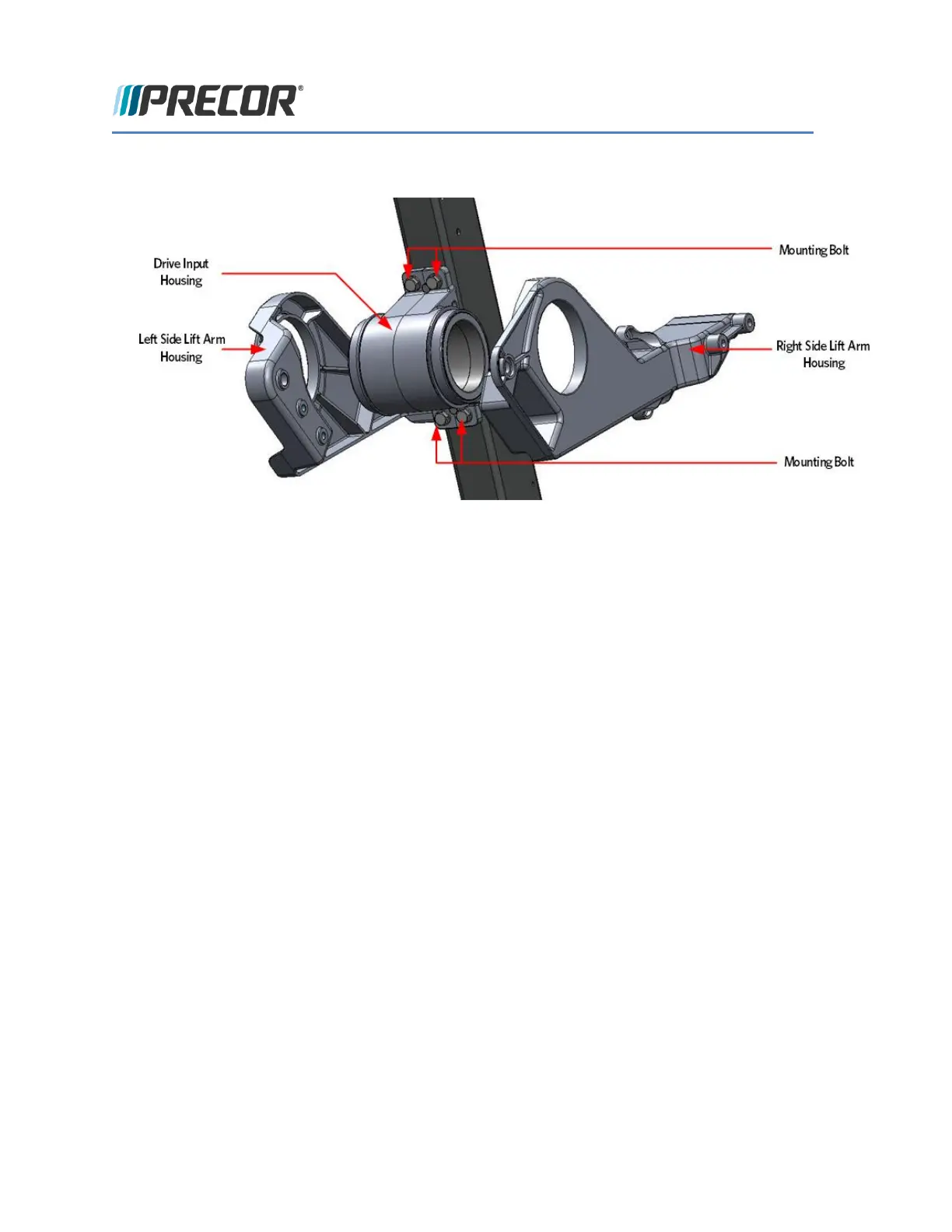

FIGURE 181: LIFT ARM HOUSING AND DRIVE INPUT HOUSING
18 Assemble the replacement left and right side arm housings on the drive input housing and secure with
the five mounting bolts, torque the bolts to 160 inch pounds.
19 Install the drive input assembly by aligning the bearing snap ring opening with tab of the drive input
housing.
20 Fasten the drive input assembly to the drive input housing using the screw and square washer. Make
sure that the square washer does not contact the drive input pulley after installation, test by spinning
the drive input pulley through its full range.
FIGURE 182: DRIVE INPUT ASSEMBLY ALIGNMENT
