© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 205

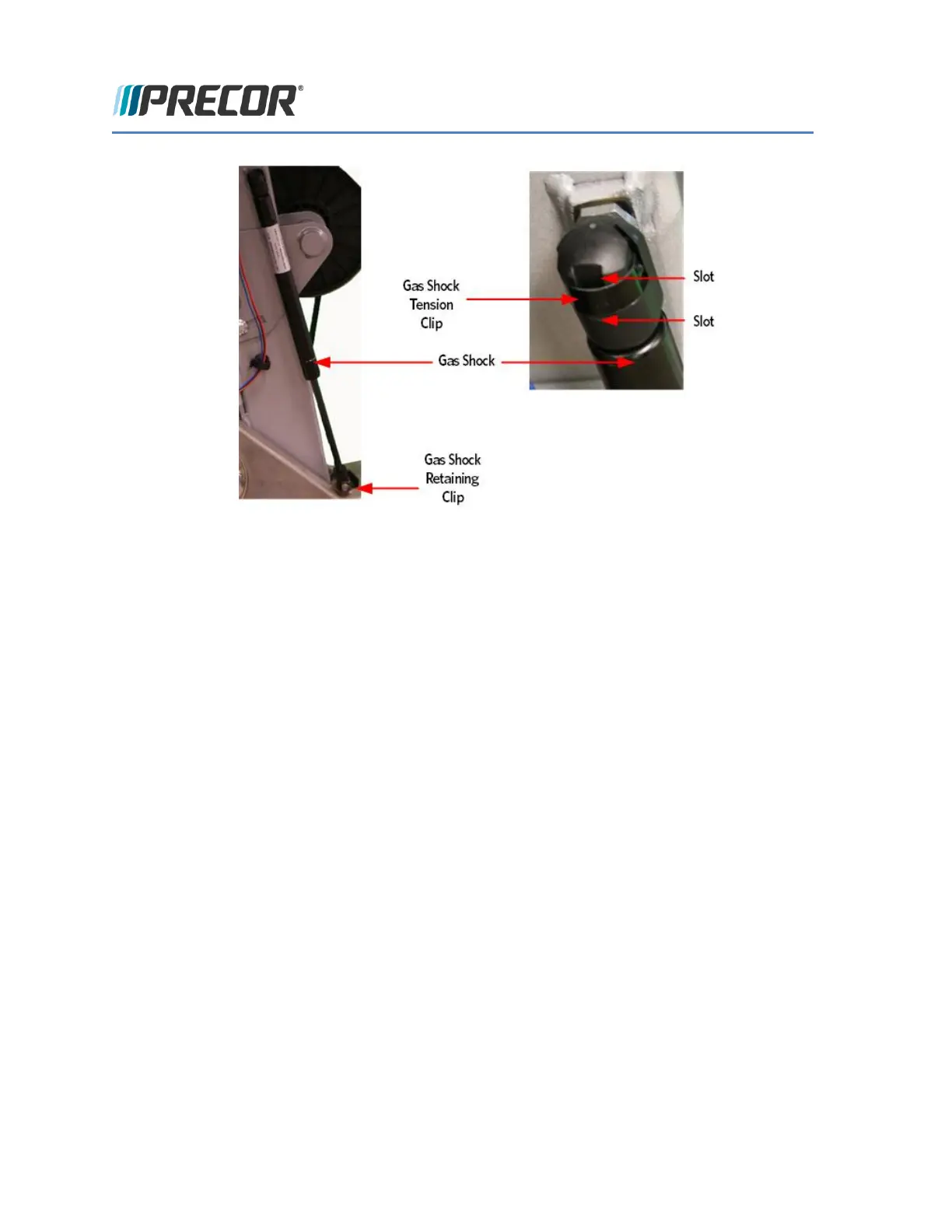

8 Using needle nosed pliers, pull the retaining clip off the lower gas mounting stud and remove shock.
Motor Removal
9 Remove the hitch pin from the Incline motor mounting pin.
10 Remove the Incline motor mounting pin. If the Incline is jammed or has excessive pressure on the pin,
it may be necessary to drive the pin out of the Incline motor tube and Incline platform using a punch and
rubber mallet.
FIGURE 196: INCLINE MOTOR HITCH PIN AND MOUNTING PIN
