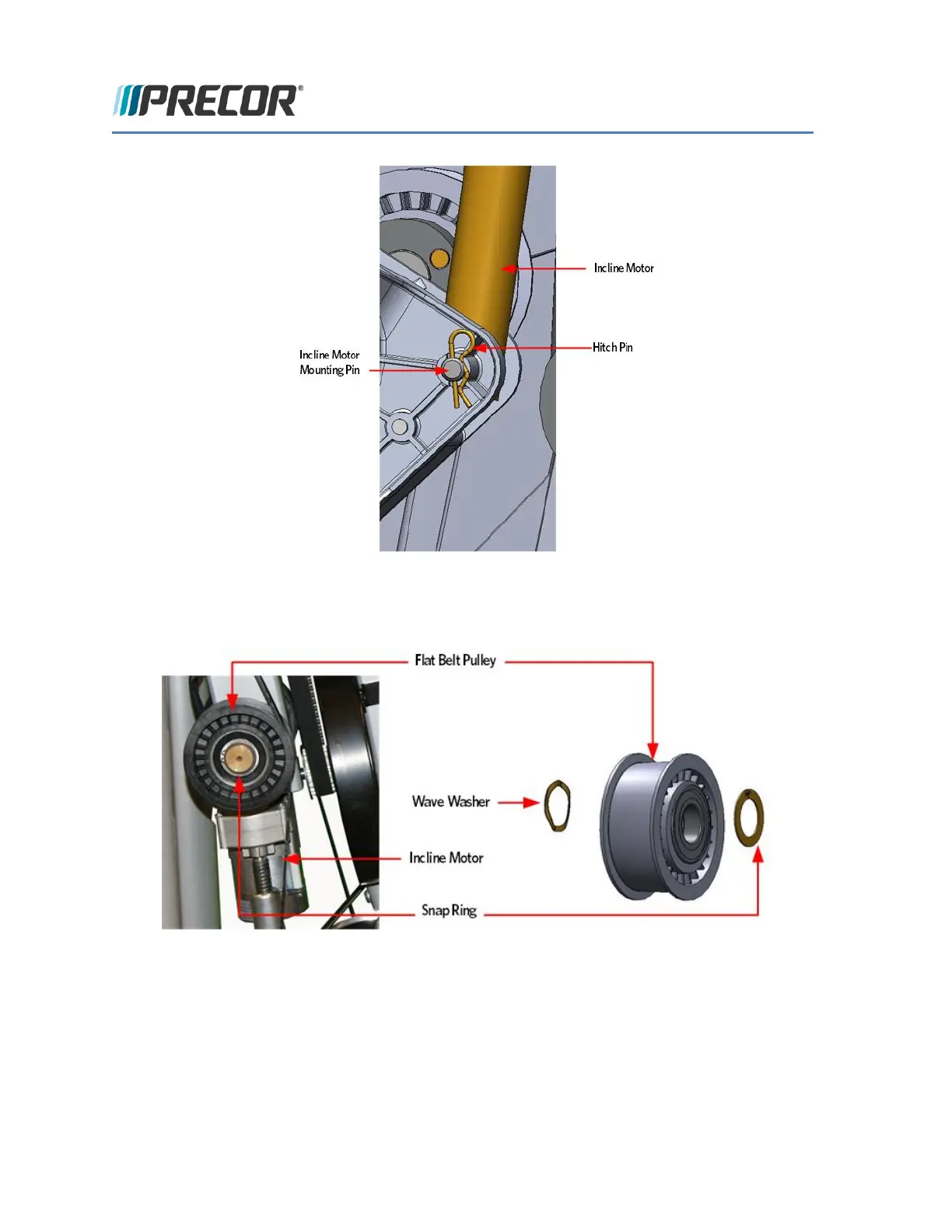

11 Remove the snap ring from the flat belt pulley shaft located next to the Incline motor. Remove the pulley
and wave washer. Removing the flat belt pulley will allow access to the Incline motor mounting bolt.
12 Remove the Incline motor mounting bolt and remove the Incline motor.
FIGURE 197: INCLINE MOTOR MOUNTING
