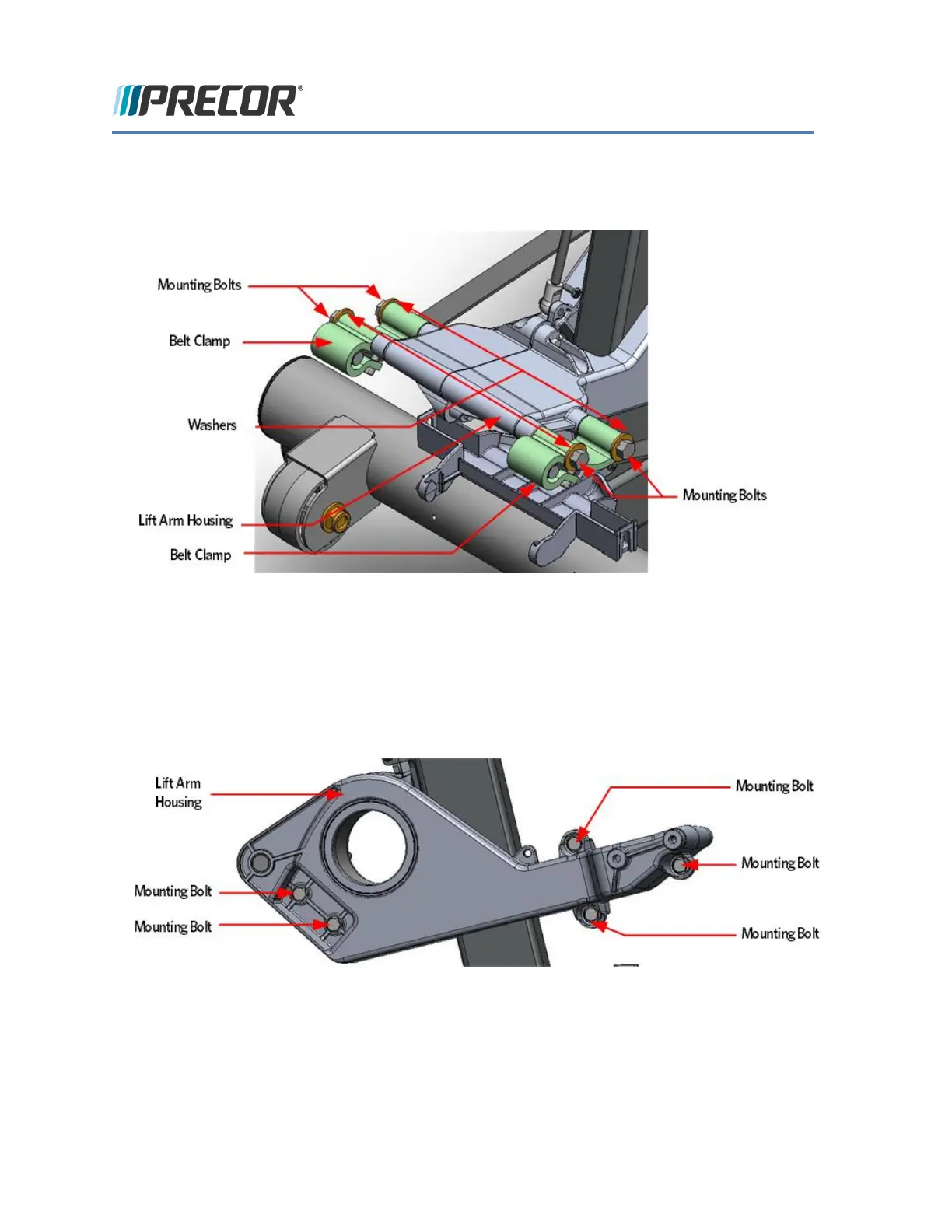

FIGURE 203: LIFT ARM AND BELT CLAMPS
18 Remove the five 5/16-18X1 mounting bolts that secure the left and right side arm housings to the input
housing.
FIGURE 204: LIFT ARM MOUNTING BOLTS
19 Separate the left and right side arm housings from the input housing.
FIGURE 205: LIFT ARM HOUSING AND DRIVE INPUT HOUSING
