27 Install the crank arm pinch bolt, washer and lock nut. Torque the pinch bolt and lock nut to 300 inch
pounds or 25 foot pounds.

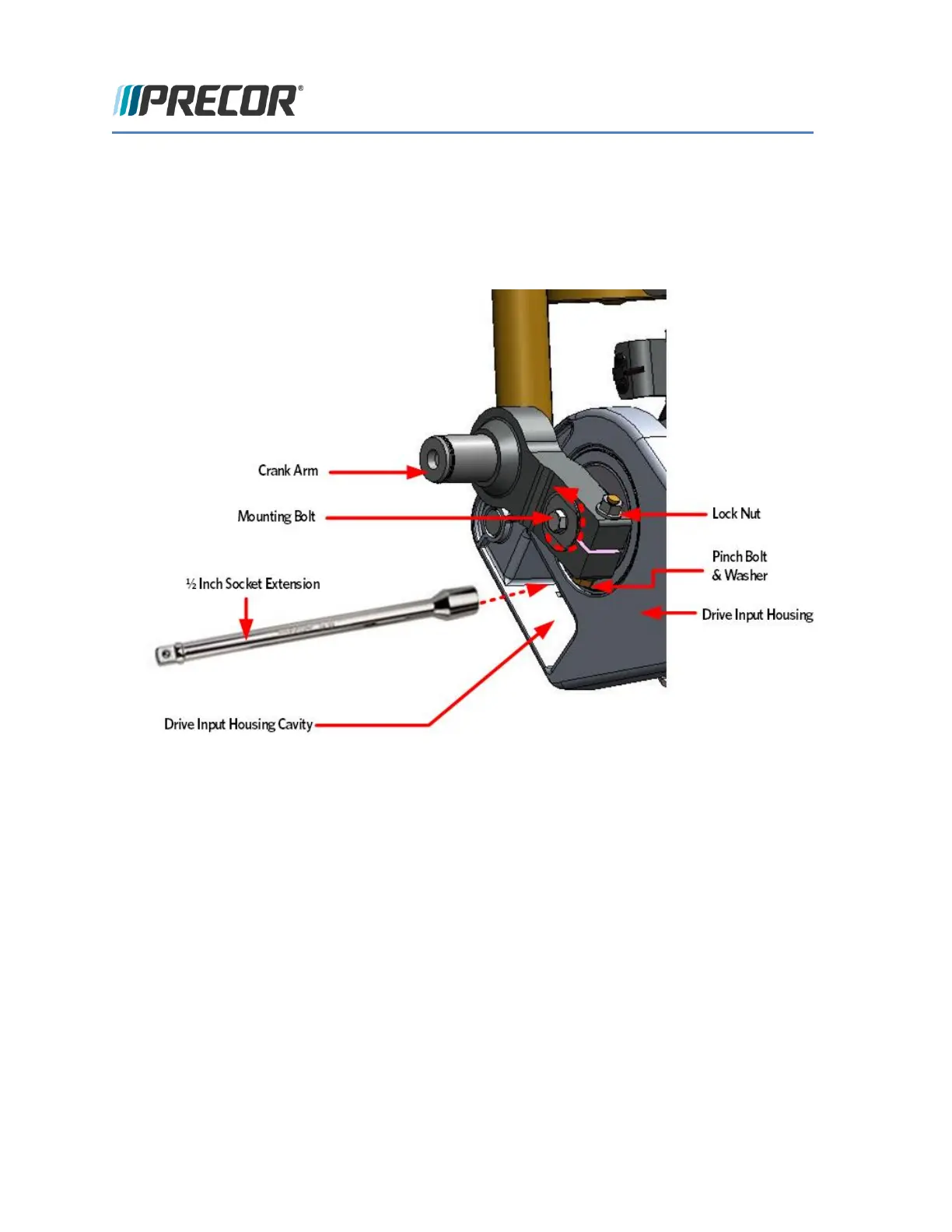

FIGURE 211: CRANK ARM BOLT REMOVAL/ INSTALLATION
28 Replace the wave washer and flat belt pulley onto the crank arm shaft and secure with the snap ring.
Make sure the snap ring is fully seated into the shaft groove.
FIGURE 212: CRANK ARM FLAT BELT PULLEY
